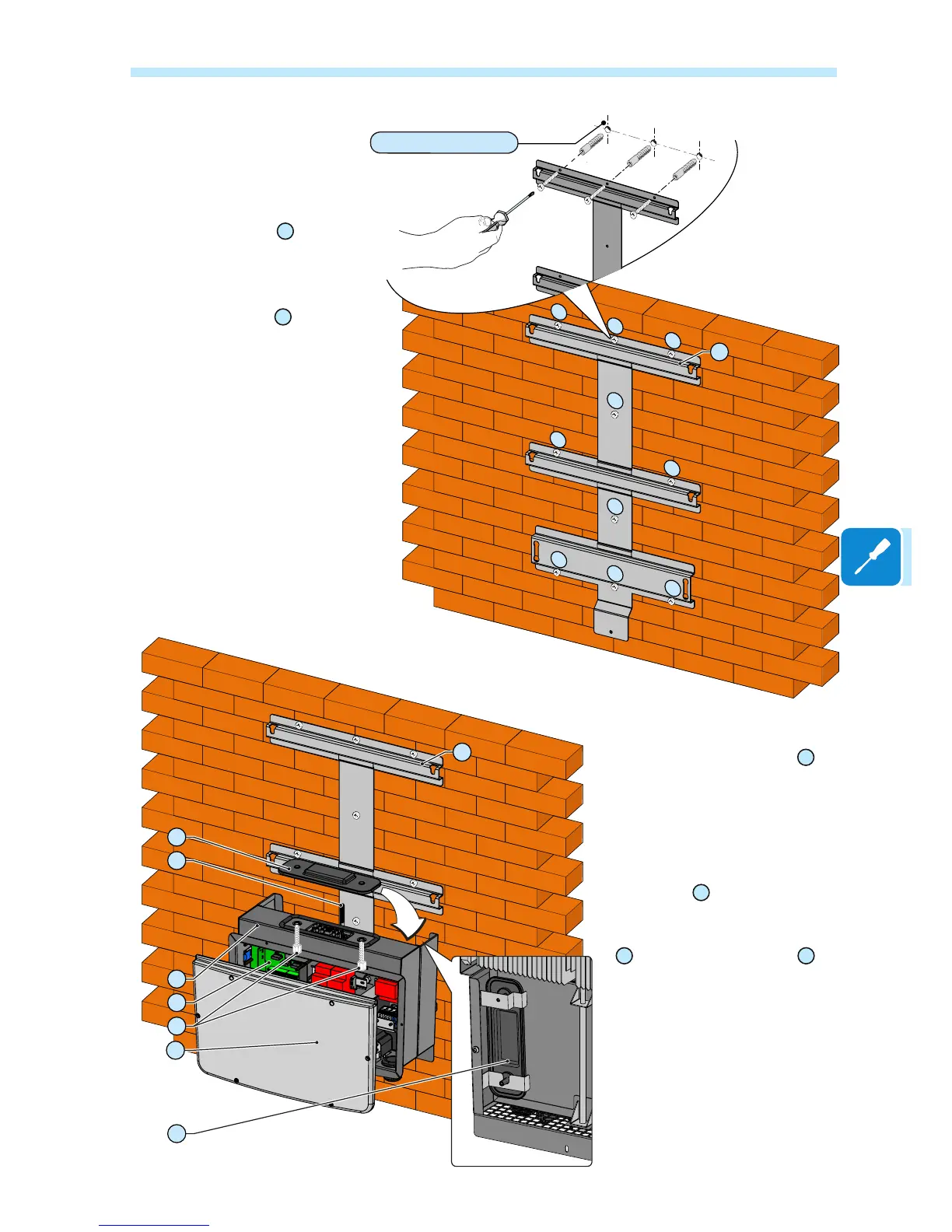

Wall mounting
• Position the bracket
01
perfectly
level on the wall and use it as a
drilling template.
• Drill the 10 holes
A
required
using a drill with 10mm bit. The ho-
les must be about 70mm deep.
• Fix the bracket to the wall with
the 10 wall anchors, 10mm in dia-
meter, supplied.
01
A
A
A
A
A
A
A
A
A
A
01
04
04
05
09
02
08
07
• Hook on the wiring box
02
by
inserting the head of the rear
screws in the slots in the bracket,
remove the front cover and make
all the necessary connections.
N.B. It is not necessary to install
the inverter
03
at this stage.
• Unscrew the connector screws
07
and remove the cover
04
so
that you can reach the connector
between the wiring box and the in-
verter.
Put the cover in the special pocket
provided at the back of the wiring
box.
