STEP 4 - Inverter country standard, Input conguration and Meter
conguration (Dynamic Feed-in Control)
-

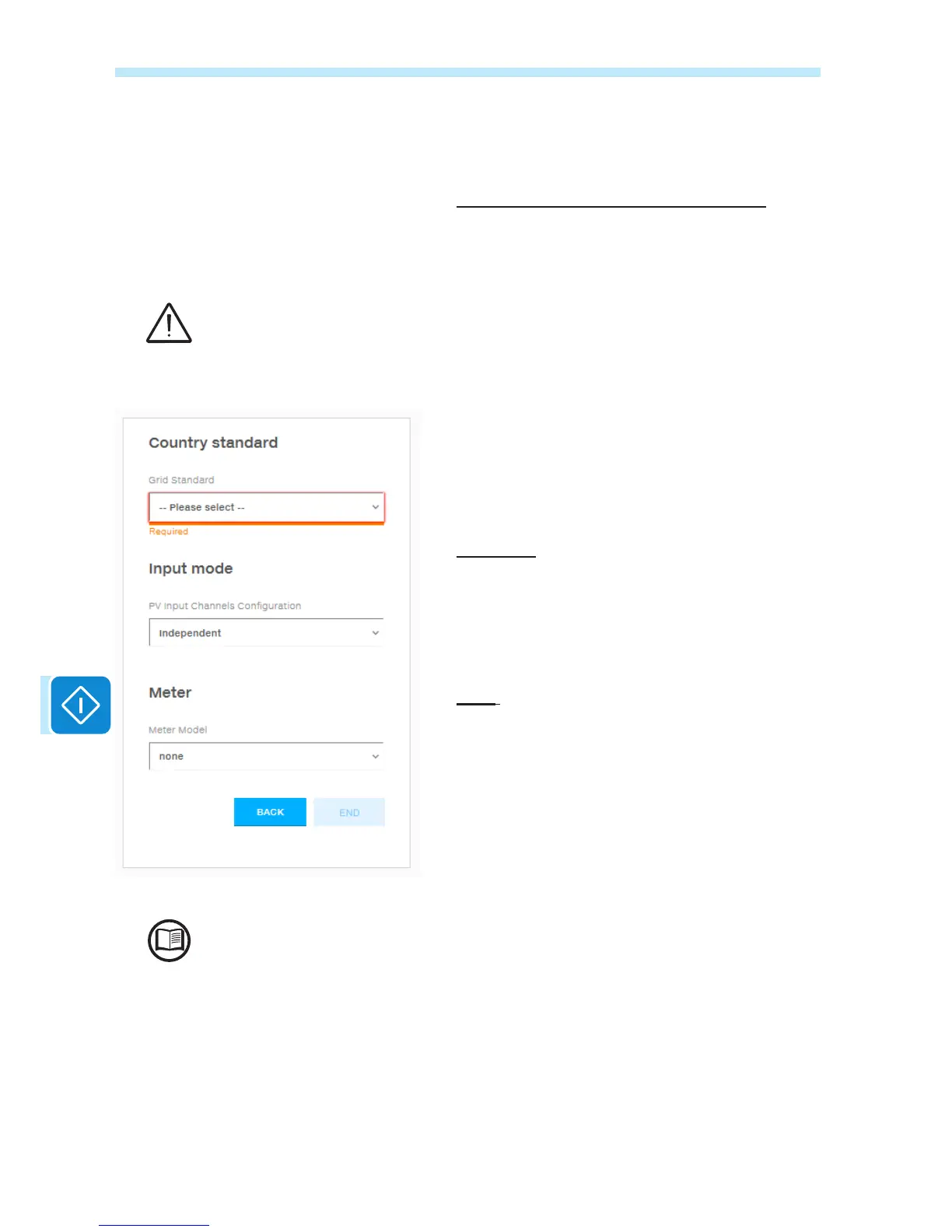

Country standard: selection of grid standard:
Set the grid standard of the country in which the inverter
is installed.
From the moment that the grid standard is set, you have 24 hours to make any changes to the
value, after which the “Country Select > Set Std.” functionality is blocked, and the remaining
time will have to be reset in order to have the 24 hours of operation available again in which
to select a new grid standard (follow the procedure “Resetting the remaining time for grid
standard variation” described in the relevant section).
-
Input mode:
(See the relevant section of this manual to know how
set the input mode)
1. Indipendent
2. Parallel
- Meter:
When a meter device is connected to the inverter, it’s
requested to select the meter model:
1. None (where system is installed without meter)
2. REACT-MTR-1PH (single-phase)
3. ABB 1PH (single-phase)
4. ABB 3PH (three-phase)
If a 3PH energy meter (ABB B23, B24) is used in the system as single-phase inverter, it will be
necessary to select
ABB 3PH
and the phase to which the inverter is connected.
