5 - Installation

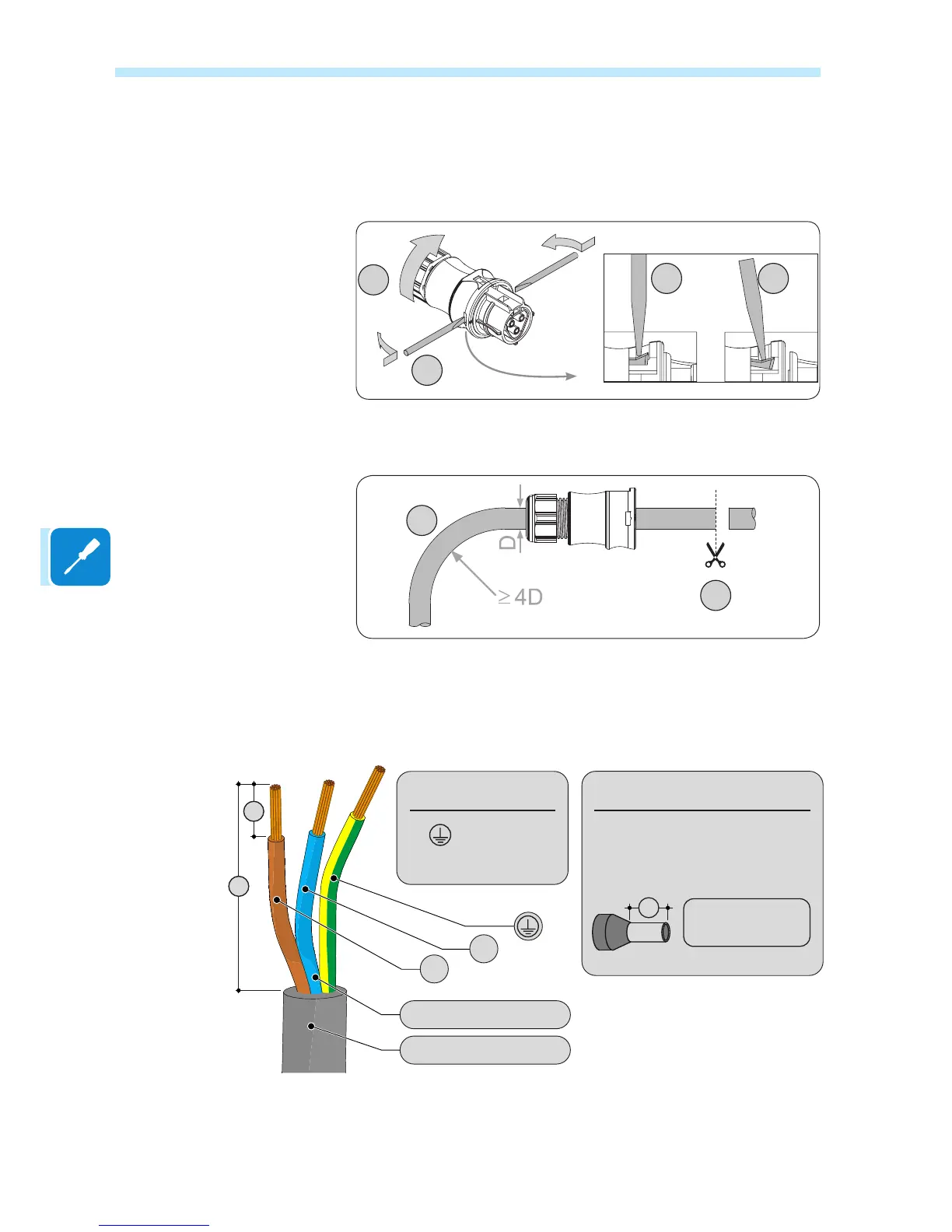

Installation of the cable on the AC output connector
• Remove the head of the connector by pressing on the two holding clips
and subsequently loosen the cable gland.
1
2
2a 2b
• Feed the cable through the connector and cut the cable to size
1
2
Ensure that the cable's radius of curvature is more than 4 times the diameter of the cable
• Prepare the cable respecting the following measurements. It’s possible
to use both stranded or solid wire but the requirements are different.
N
L
Max 6 mm²
12mm with ferrules*
8mm without ferrules*
X
Ø10÷14mm
X
Y
L,N 25 mm
Y
30mm
z:
10mm max
z
(*): The use of stranded wire with a conductor section values between 1.5 - 4 mm² are only
allowed with the mandatory use of properly crimped ferrules.
