- 75 -
000995AG
5 - Installation

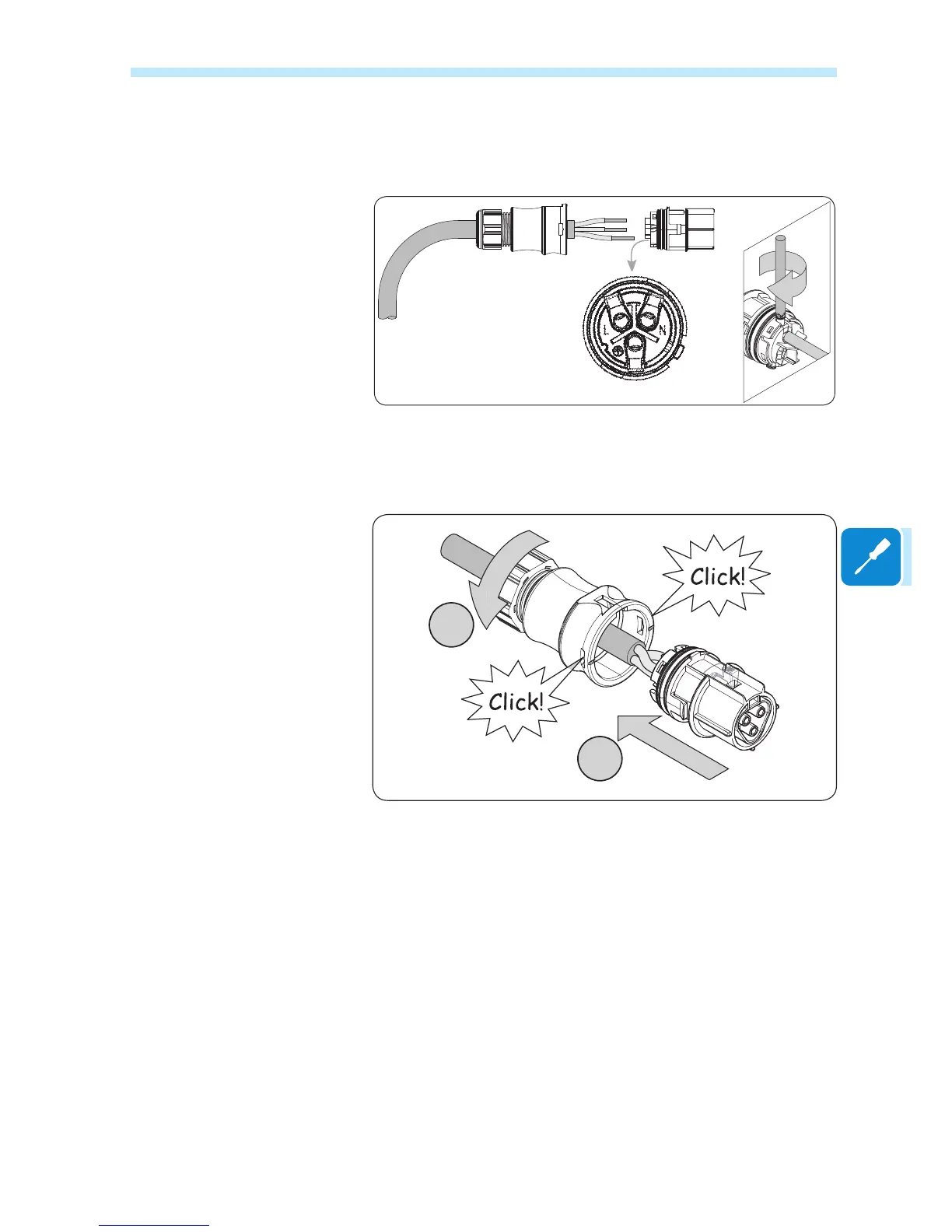

• Install the single wires (phase, neutral and ground) on the head of the
connector respecting the indications printed on each of the three connec
-
tion terminals (tightening torque 0.8...1Nm)
• Close the connector and tighten the cable gland respecting the tighten
-
ing torque (4+1Nm) in order to guarantee the IP65 protection level
1
2
74
76
