Dismantling the inverter
The dismantling operations must be carried out with the equipment disconnected from any
voltage sources.
Refer to “Inverter total de-energization and safe access” chapter on
this manual to know all the necessary step to safely operate on the inverter
.
Staff authorised to carry out the dismantling operations must be specialised and experienced
in this job. They must also have received suitable training on equipment of this type.
• Open the external DC and AC dis-
connects switches.
• Disconnect any power supplies that
may be connected to the UNO-DM-
COM KIT and UNO-DM-PLUS-
COM ETHERNET KIT.
• Disconnect any cables from the in-
verter:
- DC cables
- AC cables
- Any cables that may be connected
to the UNO-DM-COM KIT UNO-
DM-PLUS-COM ETHERNET KIT

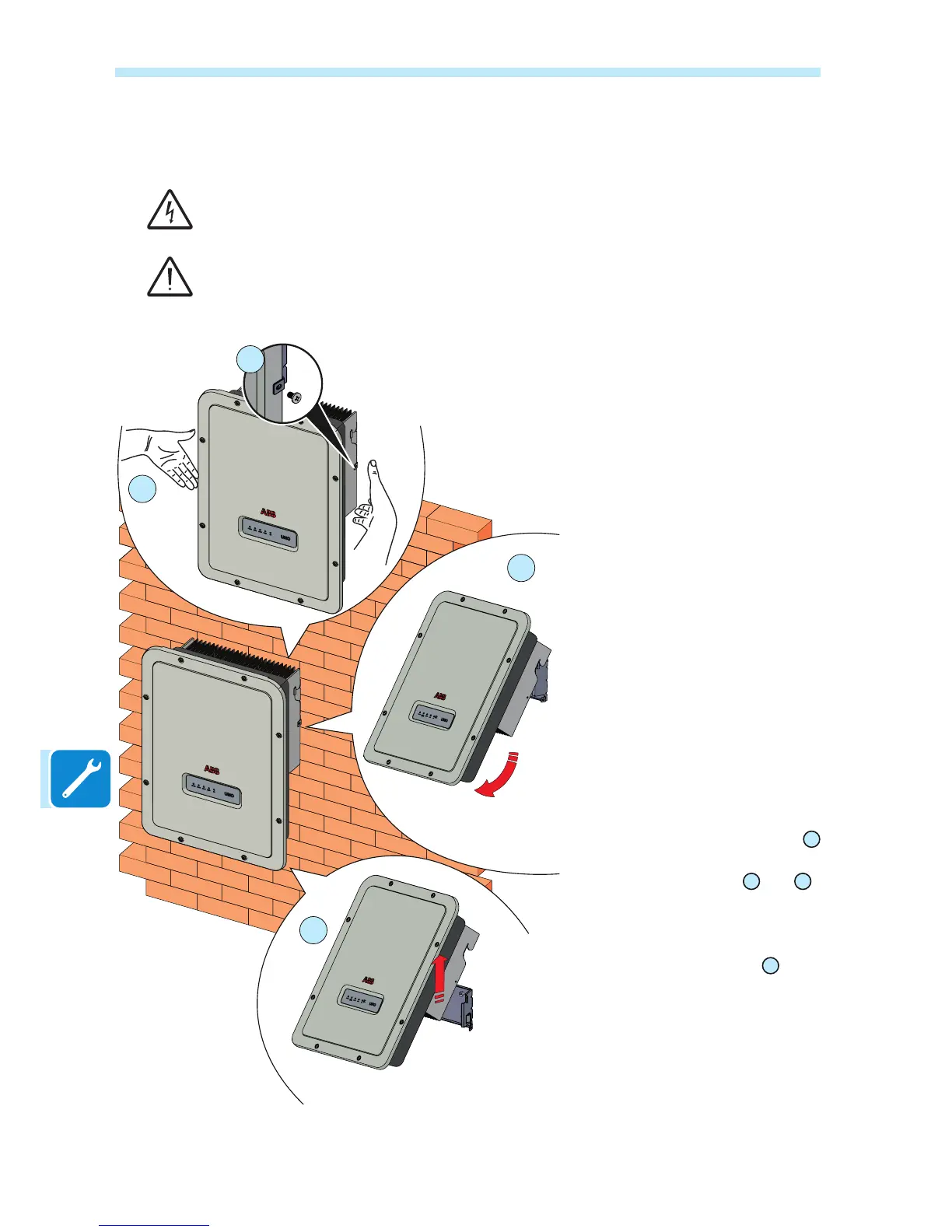

• Proceed to unlock the inverter from
the bracket by unscrewing the two
(one each side) locking screws
13
and pulling forward the lower part
of the inverter (gures
A1
and
B
).
• Remove the inverter from the wall
bracket pulling it up (gure
C
).
A
A1
C
