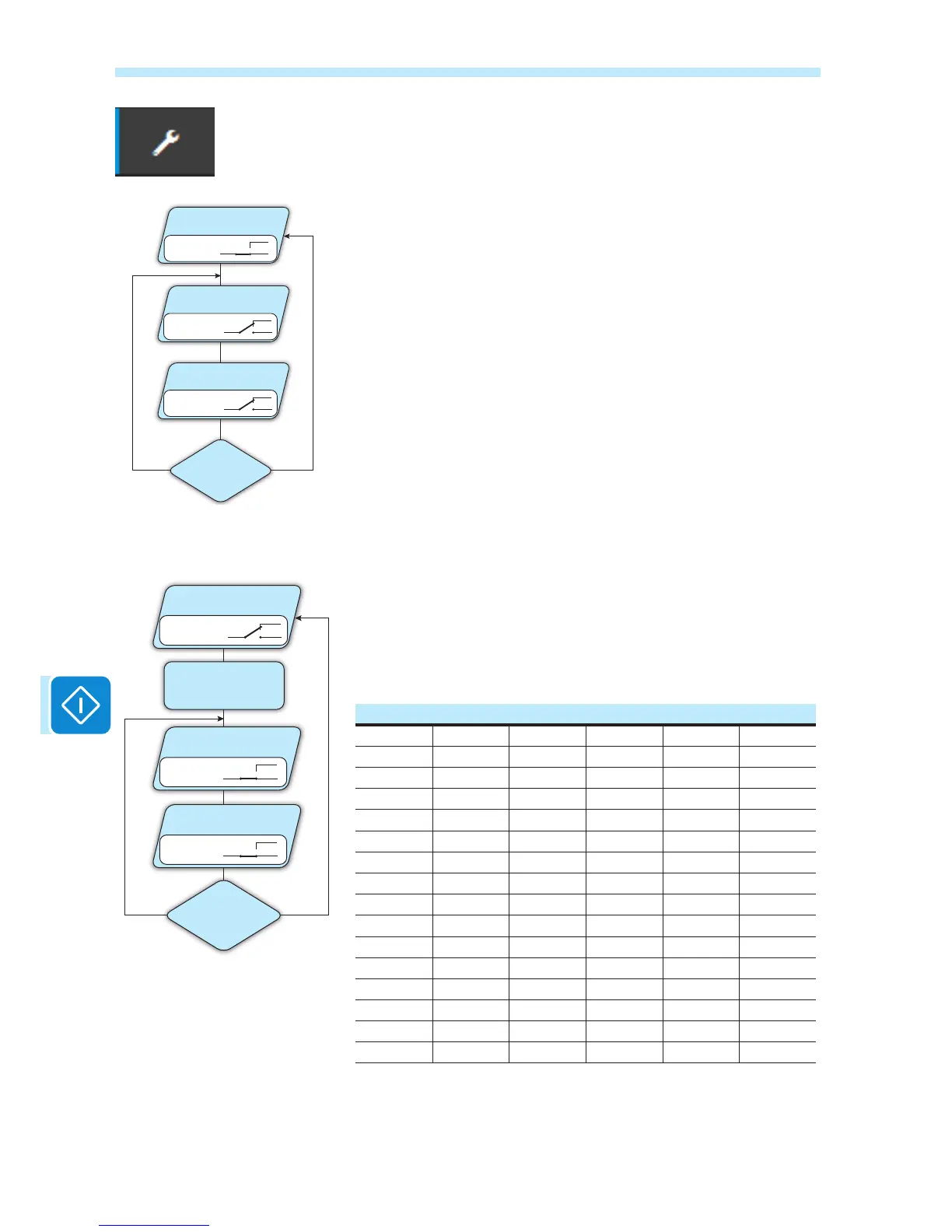

• Crepuscolar - “Alarm-Contact (crepuscolar)”:
The relay is activated (status: switched) as soon as the inverter input
voltage exceeds the activation voltage set.
The relay switch to rest position when the input voltage drops below 70%
of the activation voltage set.
This mode is useful for disconnecting any output transformers that could
have unnecessary consumption during the night.
• Alarm Latch - “Alarm-Contact (alarm ALL - latch)”:
The relay is activated (status: switched) whenever an error (code Exxx)
or a warning (code Wxxx) is present (see the table below). When the in-
verter returns to the normal operating state and reconnects with the grid,
the contact returns to its position of rest.
Alarms for which the relay is activated
E001 E002 E003 E004 E005 E006
E007 E010 E011 E012 E013 E014
E015 E016 E017 E018 E019 E020
E021 E022 E023 E025 E026 E027
E028 E029 E030 E031 E032 E033
E034 E035 E036 E037 E046 E050
E051 E053 E054 E055 E056 E057
E058 E065 E066 E067 E068 E069
E070 E074 E077 E078 E080 E084
E086 E087 E088 E089
W002 W003 W004 W005 W006 W007
W009 W011 W015 W017 W018 W019
W021 W022 W023 W024 W027 W029
W030 W036 W037 W039 W040 W042
W043 W046 W047 W048 W051 W058
W059
If the alarm condition is persistent, the relay will remain activated (sta-
tus:switched)
Vin > Vstart
Vin < Vstart
GRID RECONNECTION
t=based on Country Standard
Vin
IS STILL LESS THAN
Vstart
Yes No
N.C.
N.O.
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Switched
Relay State:
Idle
INVERTER RUN
ERROR OCCURENCY
ERROR MESSAGE
t=15s
GRID RECONNECTION
t=based on Country Standard
ERROR
STILL
PRESENT
Yes No
N.C.
N.O.
N.C.
N.O.
Relay State: Idle
Relay State: Switched
N.C.
N.O.
Relay State: Switched
To Next Page
