Using corresponding parts that are not compliant with the quick t connector models on the
inverter could cause serious damage to the unit and lead to invalidation of the warranty.
Connect all the strings required by the system, always checking the seal
of the connectors.

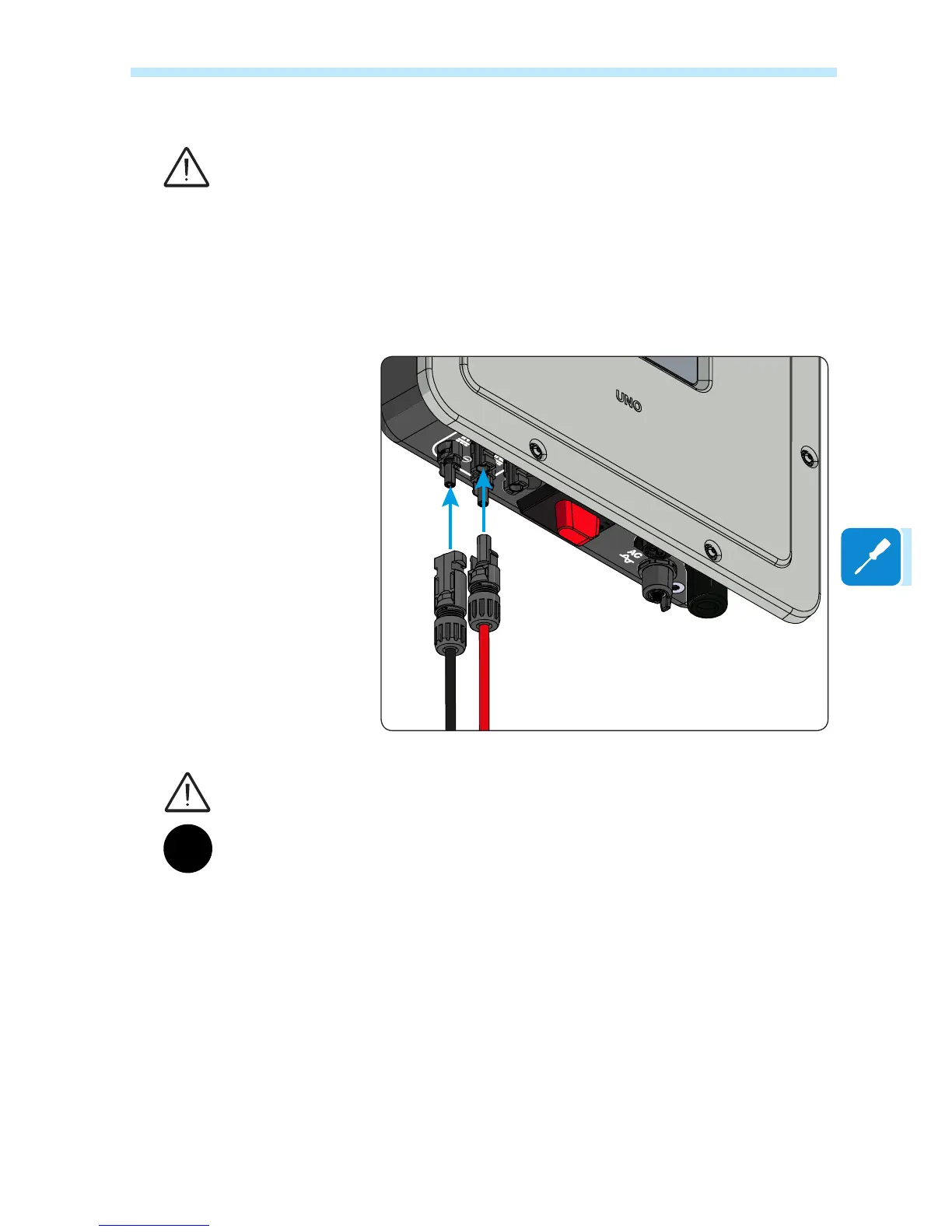

The gure below shows a connection example of the string inputs on a
UNO-DM-3.3-TL-PLUS-SB-Q inverter.
If any string inputs are not required, you must ensure that covers are installed to the connec-
tors, and install any which are missing.
This is necessary both for the inverter seal, and to avoid damage to the free connector which
may be used at a later time.
IP65
