Operation Manual / A100-L
13 Spare parts / 13.2 Spare Part - Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4034_EN
Rev.T
December 2021

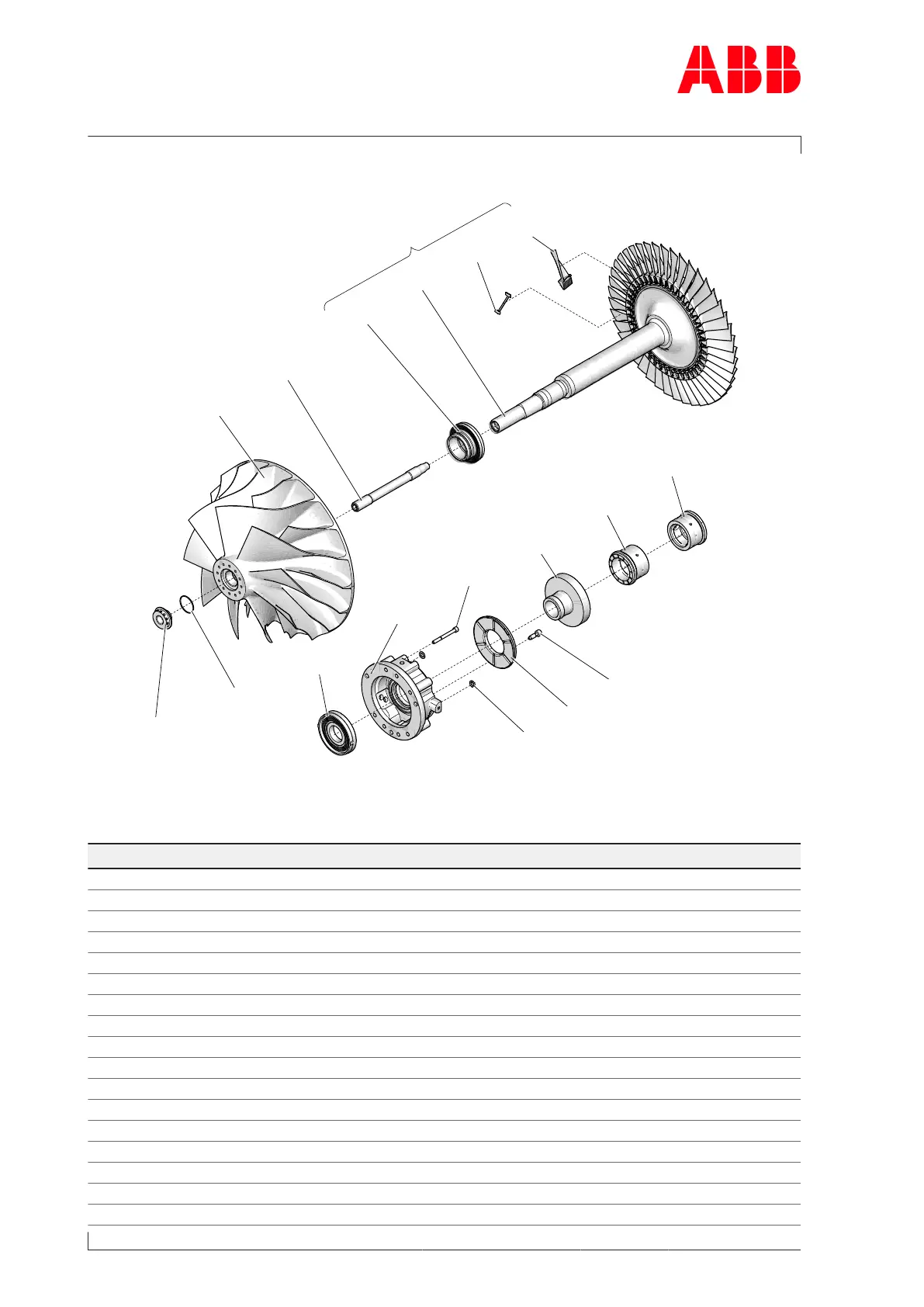

Rotor and bearing parts
21000
25011* **
42320*
29000
21005*
21001
21010
32102*
32101*
25008
32159*
32001*
32105*
25000
32174*
32106*
25009
32109*
* = Av
ailable within the spare part set
HZTL443574 Mod. A
** = only without spinner nose cone
Part no.
Designation
21000
Turbine
21001
Turbine unbladed
21005*
Locking plate
21010
Labyrinth sleeve
25000
Compressor wheel
25008
Threaded stud
25009
Ring nut
25011* **
O-ring
29000
Turbine blade
32001*
Thrust bearing
32101*
Radial bearing
32102*
Radial bearing
32105*
Floating disc
32106*
Axial bearing
32109*
Sealing disc
32159*
Safety screw
32174*
O-ring
Page 130 / 141
