XIO USER MANUAL | 2106424MNAB | 119

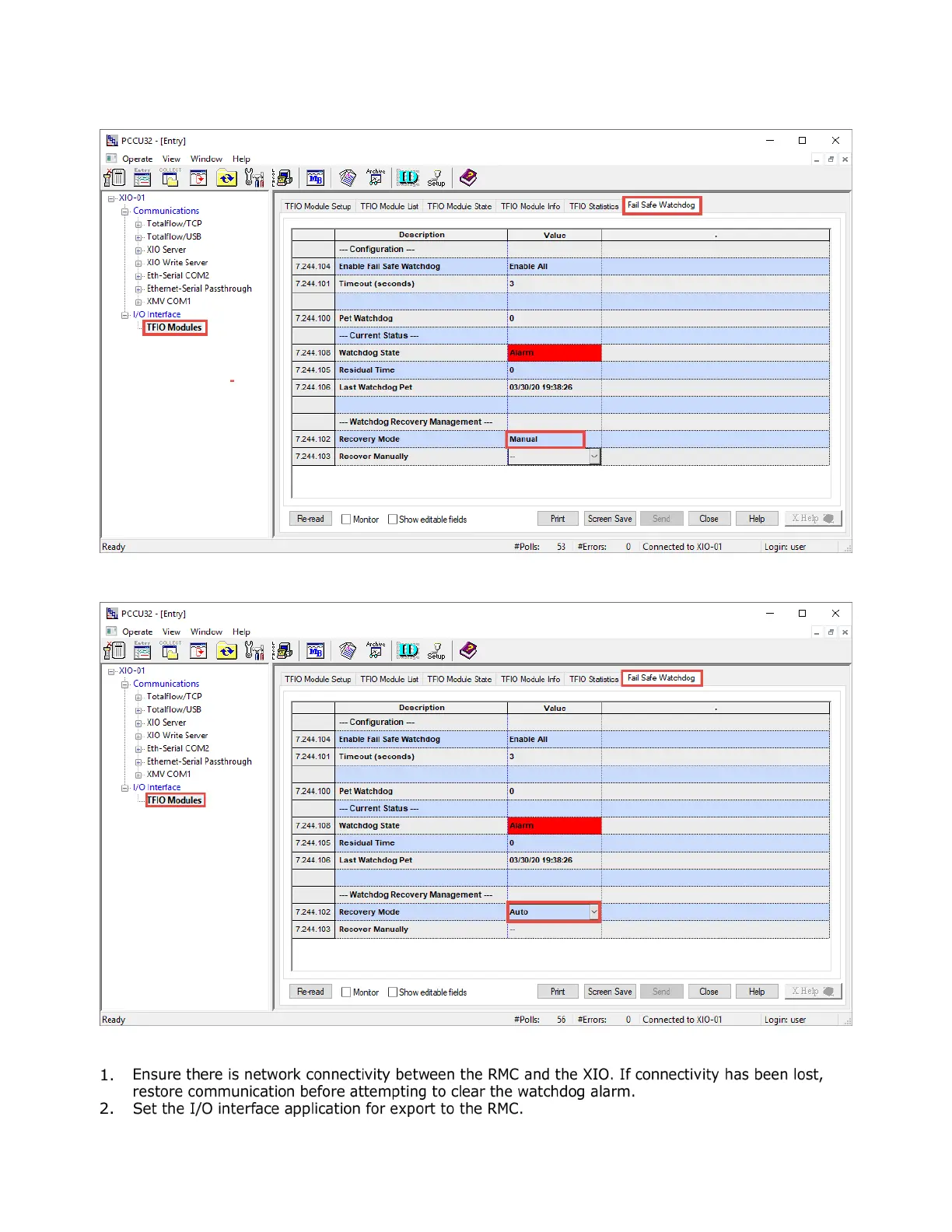

Figure 6-23: Fail Safe Watchdog in Alarm State (Manual recovery mode)

Figure 6-24: Fail Safe Watchdog in Alarm State (Auto recovery mode)

To clear the alarm:
