Figure 10-2: Local wireless access by operator to multiple XIOs
10.3.2 Local wireless access to RMC by host
The XIO AP bridge mode supports bridging of network traffic from a local wireless client to a wired device.
Figure 10-3
depicts this scenario. The host with PCCU has Wi-Fi client capabilities and can establish a
wireless link to the local wireless network advertised by the XIO. The XIO is configured in AP-Bridged
mode. It connects to the wired network (using A1 port). When it receives traffic directed to the RMC IP
address, on its wireless link, it forwards that traffic to the A1 port. The RMC receives traffic on its Ethernet
port (E2). This network traffic flow is depicted by the blue line.
The XIO supports the Wi-Fi AP bridged mode only when in 4-port switch

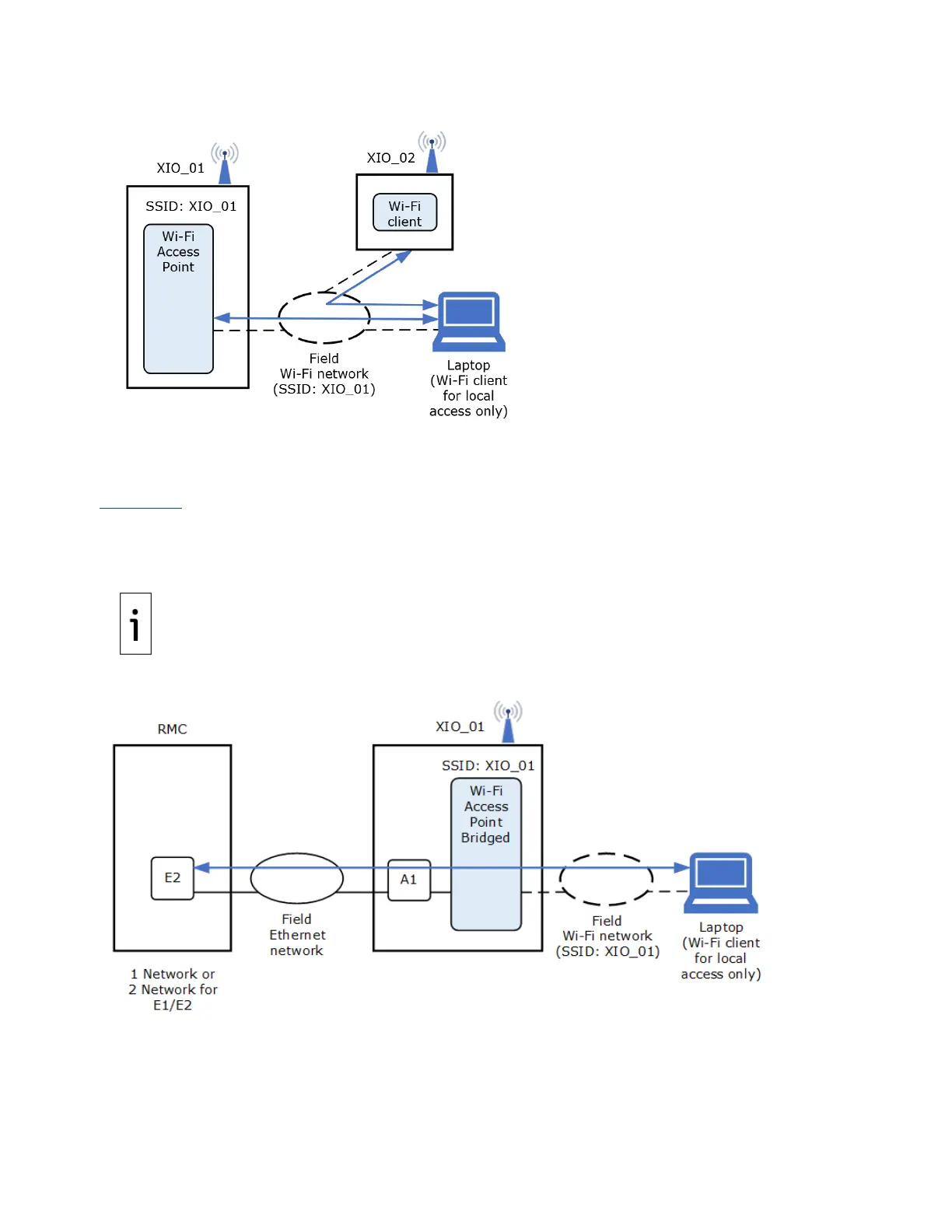

Figure 10-3: Local wireless access to an RMC (through an XIO)
