XIO USER MANUAL | 2106424MNAB | 37

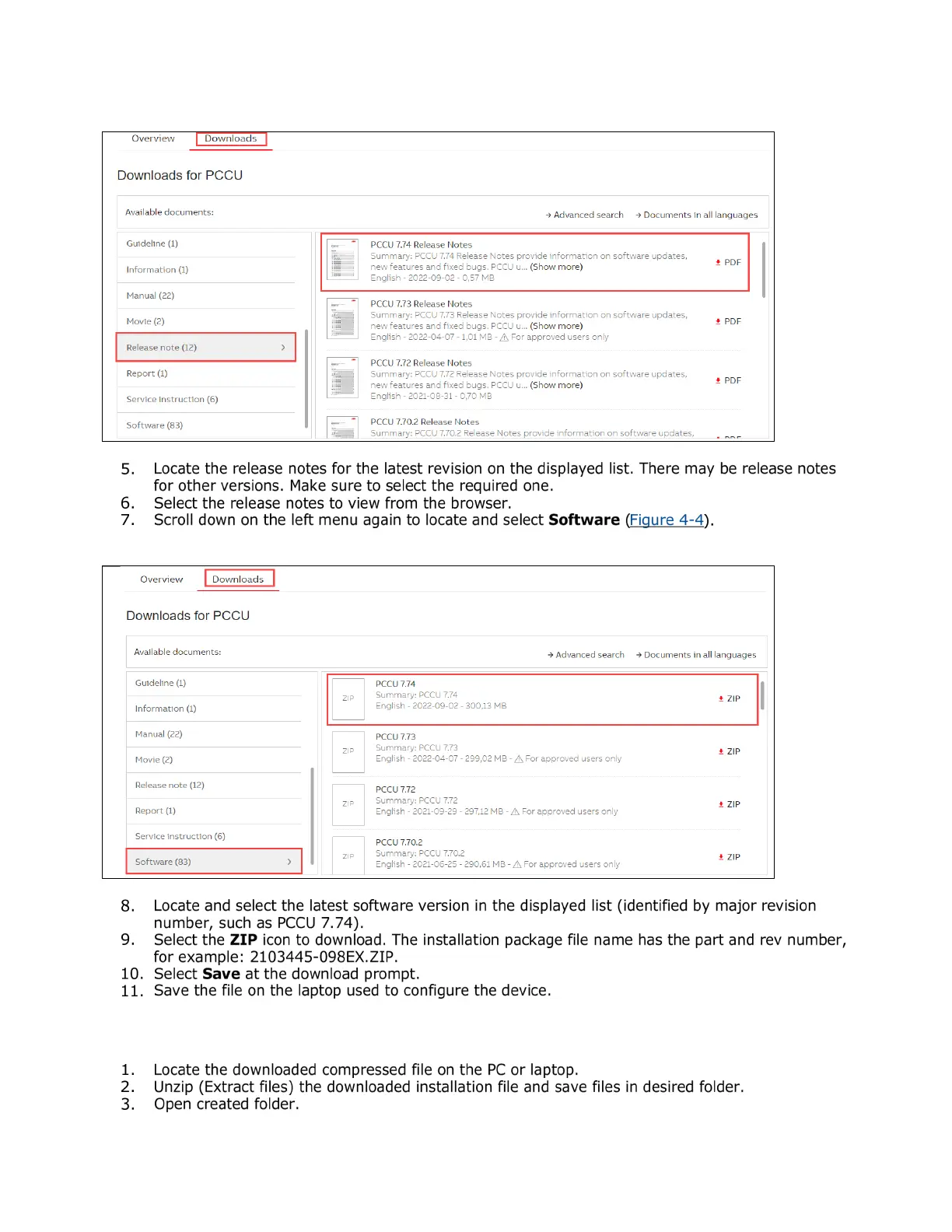

Figure 4-3: Release notes list

Figure 4-4: PCCU installation software revisions list

4.2 Install PCCU32

PCCU32 software operates in a Windows

environment. To install PCCU32:
