XIO USER MANUAL | 2106424MNAB | 99

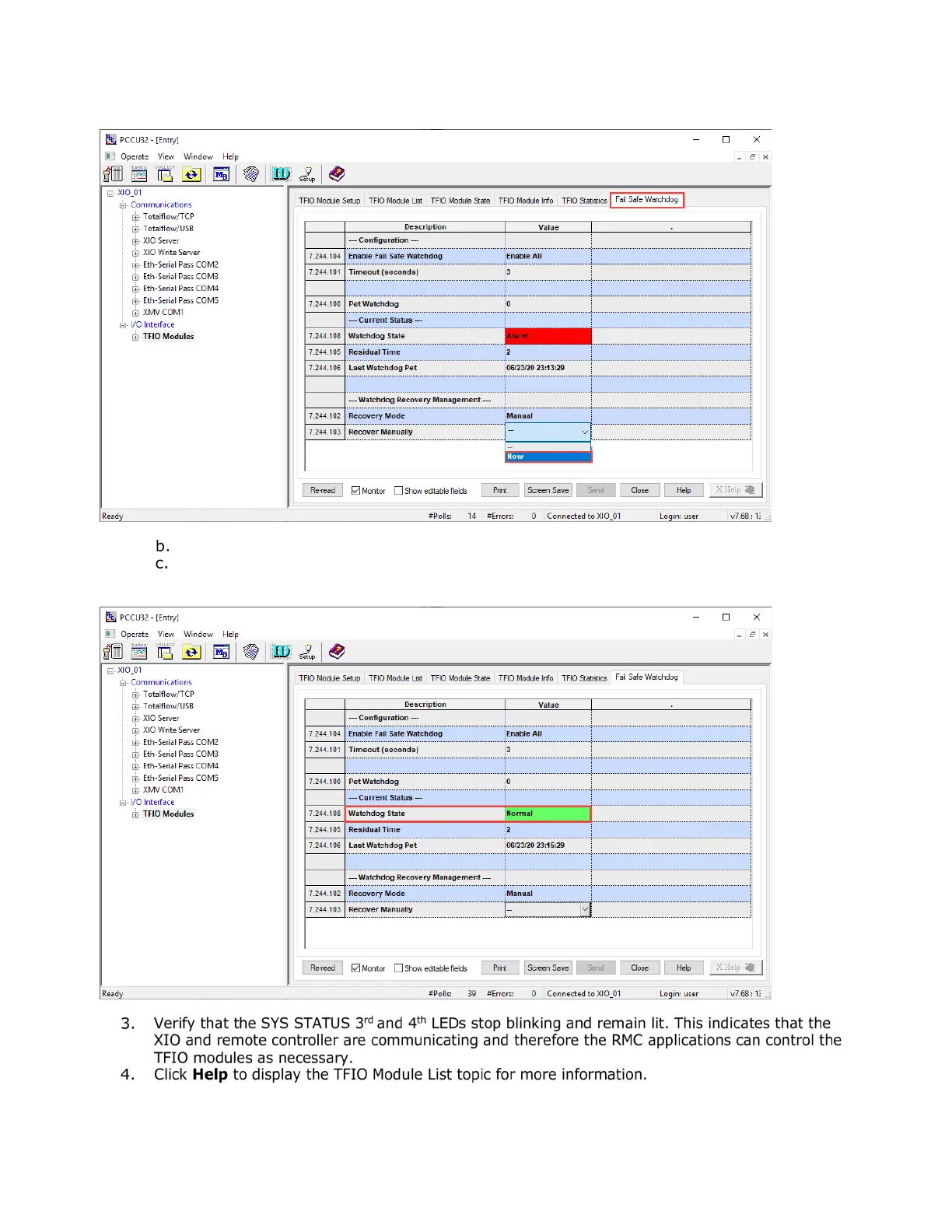

Figure 4-90: Recover Watchdog Manually

Click Send.

Verify that the Watchdog State displays Normal (green).

Figure 4-91: Fail Safe Watchdog tab – Watchdog in Normal state (Alarm cleared)
