the visualization. Only experienced users should use the variable
diagnosis option.
The display of counter values of the variable list can be controlled. Switching of the
value display resets the column width back to the default. For example, manually
widened columns become wider as a result. In the variable lists, the following content
is visualized in counter values and can be switched using the value display.
• Actual value
• Set value
• Minimum
• Maximum
• Actual value (raw data)
2
3
1
GUID-14B4DA28-F7D1-407D-8709-A1A08D66B7C3 V1 EN

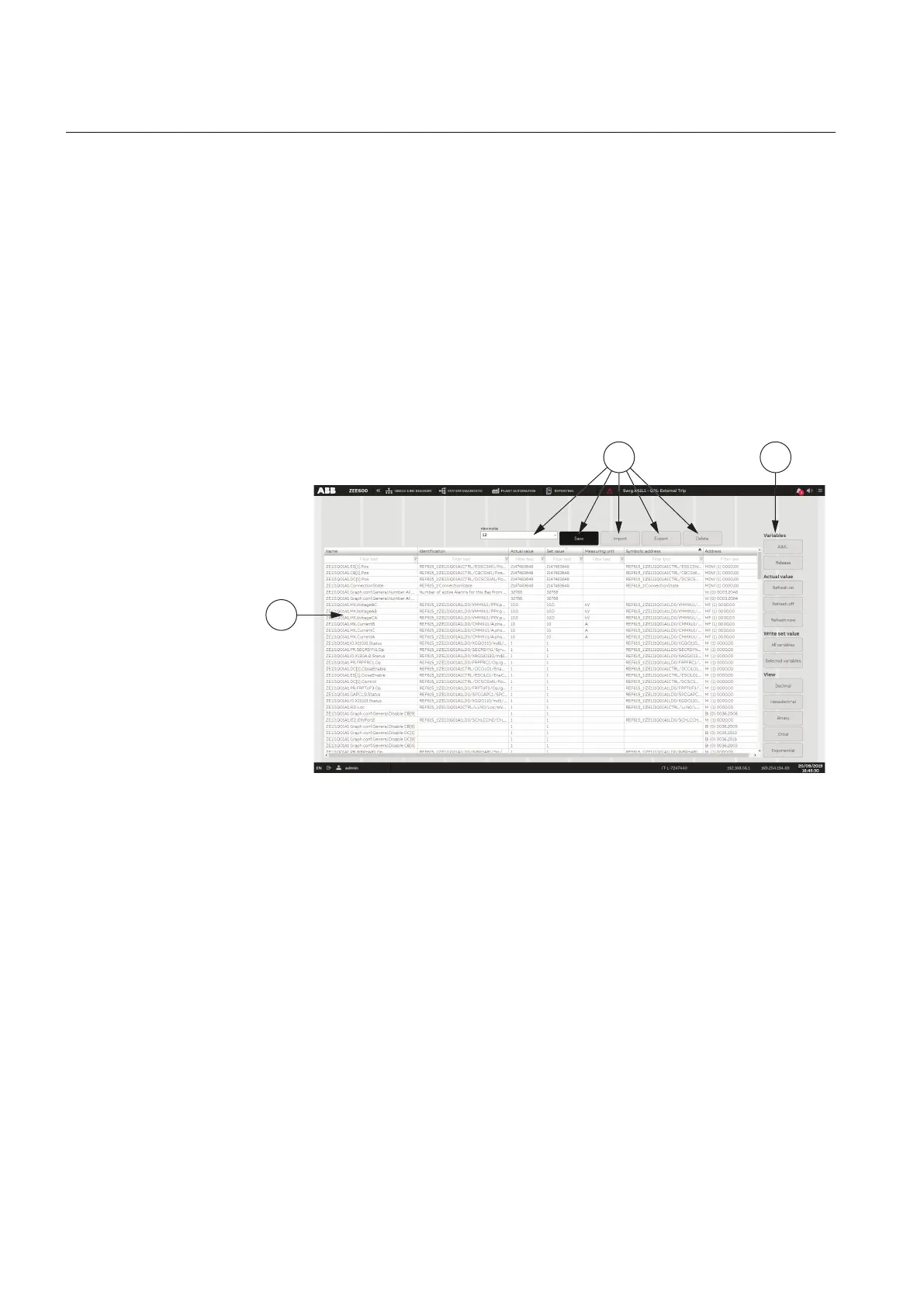

Figure 47: Variable diagnosis with selected variables
1
Filter buttons
2 Control buttons
3 Variable list
1. On the main screen, select Utilities from the vertical menu.
2. Under Variable diagnosis, click open screen.
3. Manage the variable list.
