ABEM Terraloc Pro 2
11
The Power Panel
The power panel of the Terraloc Pro 2 is shown in Figure 3. The Power Input connector
is described in more detail in chapter 10 Appendix B. Connectors.

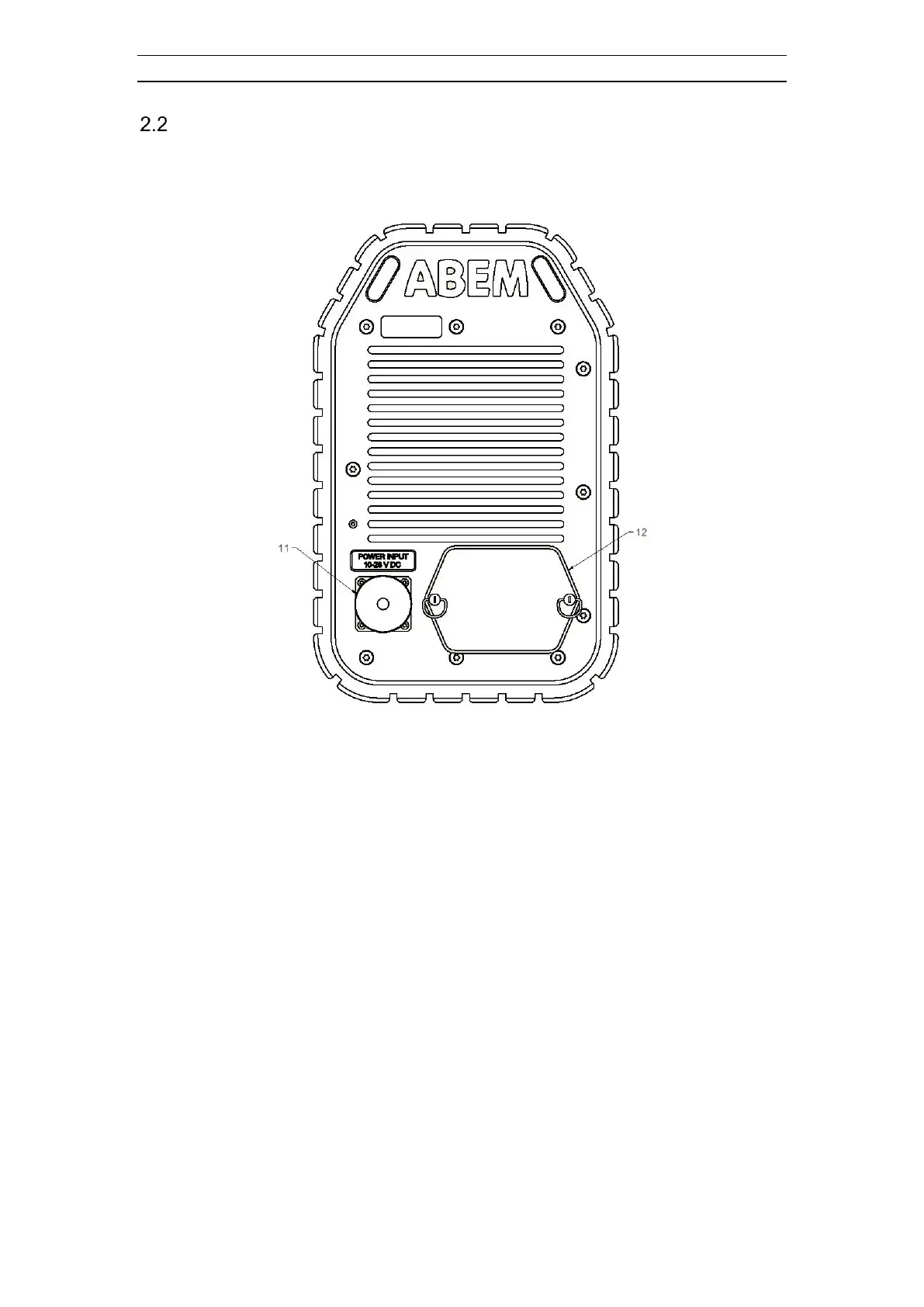

Figure 3 The Power panel
The connectors:
Label
Function
11
Power Input: for connecting an external power source.
Use External Power cable with clips for a car battery, or
Office power unit
12
Internal battery lid
