Interconnecting Two or More Instruments
Should more channels be needed than can be supplied by the use of a single instrument,
it is possible to connect (virtually) any number of Terraloc Pro 2 instruments. The Arm,
Disarm, and Trigger events can be synchronized with interconnected instruments. The
TTL Arm/Trig connector is used to connect the instruments, see chapter 10.2.
Figure 6 shows an example from a survey where four Terraloc Mk6 were used to
comprise a 96-channel system. The same can be done with Terraloc Pro 2 instruments.

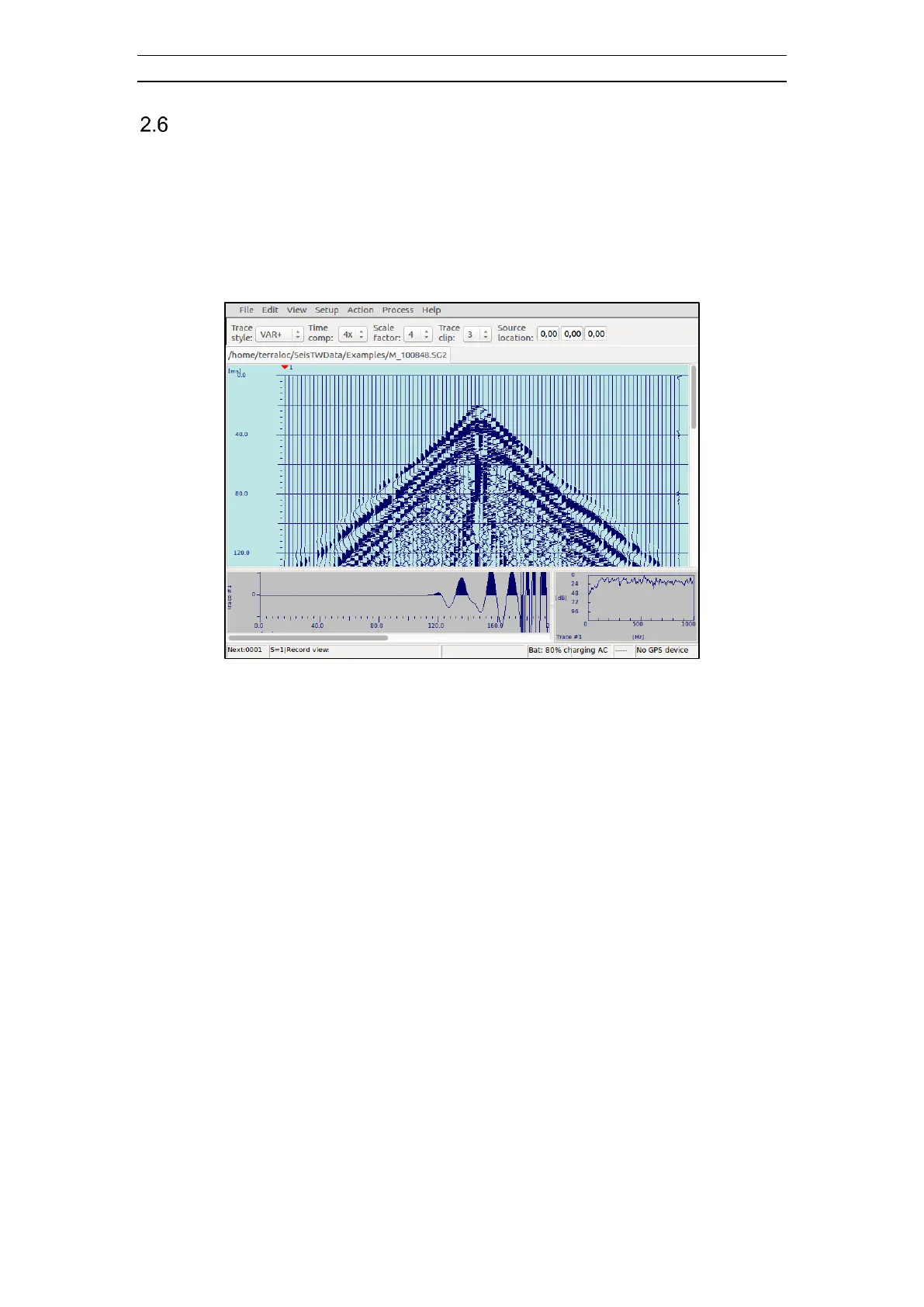

Figure 6 96-channel record, made using four interconnected Terraloc Mk6
