abem Terraloc Pro 2 - 10 Appendix B. Connectors; Seismic Input Connectors

ABEM Terraloc Pro 2
90
10 Appendix B. Connectors
Seismic Input Connectors
10.1.1 12 and 24 Channel Terraloc Pro 2
Connector type:
Cannon NK-27-32P Panel connector (mating side) (fits to NK-27-21C-1/2 ” cable
connector)

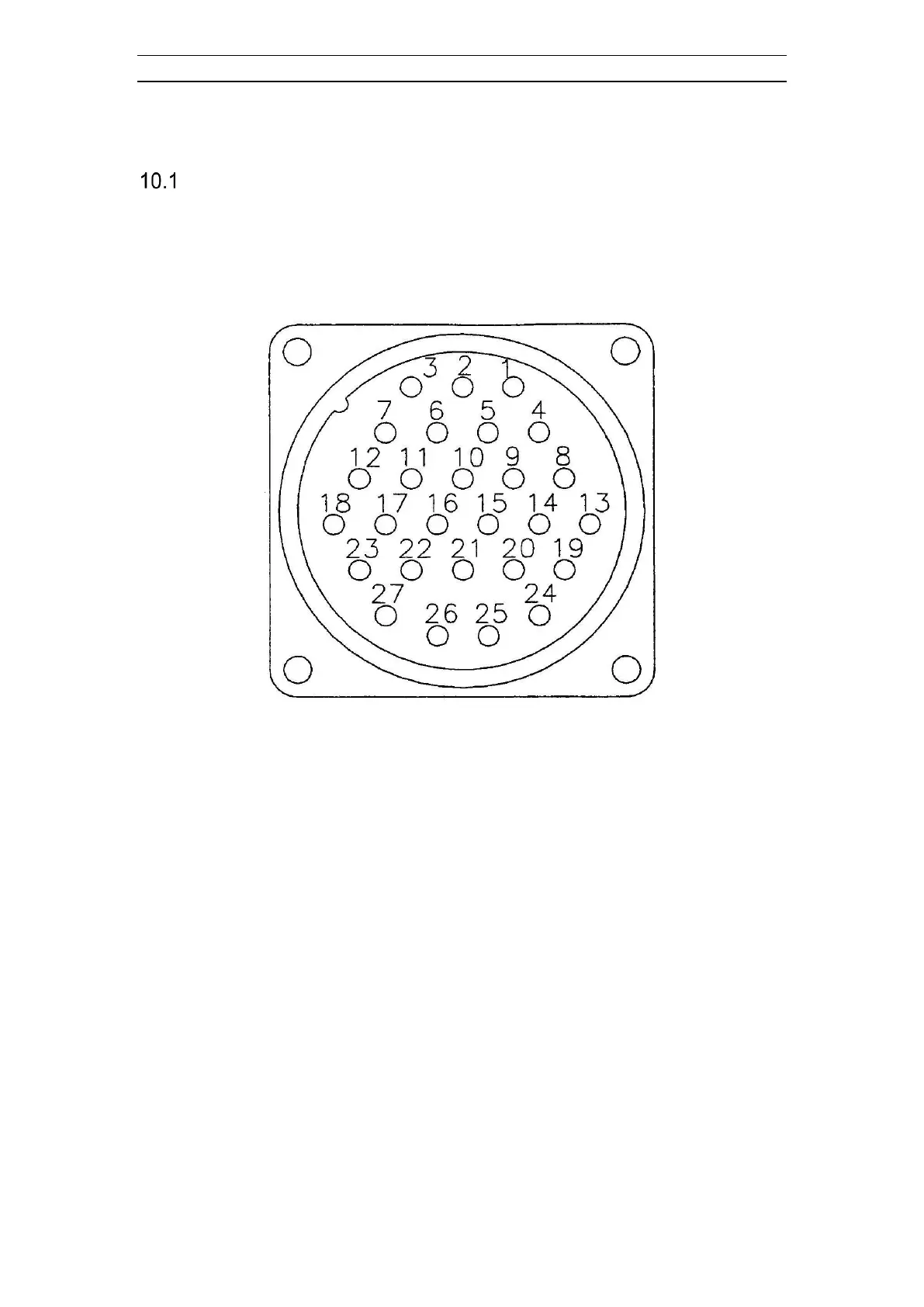

Figure 71 Input Connector 12- and 24-channel Terraloc Pro 2
Connector 1-12
Connector 13-24
Pin
Channel
Pin
Channel
1
1+
1
13+
2
1-
2
13-
3
2+
3
14+
4
2-
4
14-
“
“
“
“
“
“
“
“
23
12+
23
24+
24
12-
24
24-
10.1.2 48 Channel Terraloc Pro 2
Connector type:
