ABEM Terraloc Pro 2
91

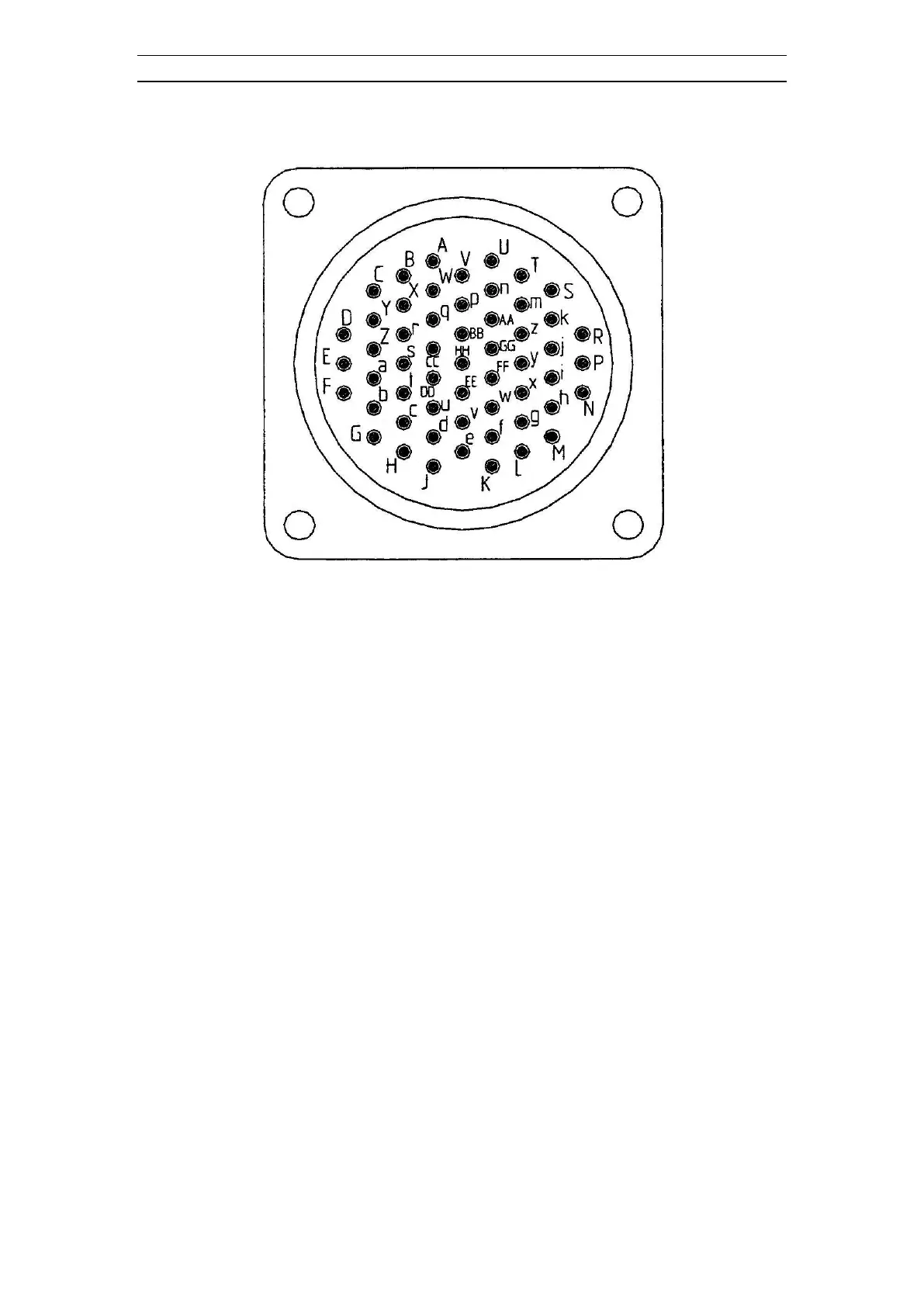

Cannon KPT-02-A22-55P Panel connector (mating side) (fits to KPT-06 A22-55S
cable connector)
Figure 72 Input Connector 48-channel Terraloc Pro 2
Connector 1-24
Connector 25-48
Pin
Channel
Pin
Channel
A
24+
A
25+
B
24-
B
25-
C
23+
C
26+
D
23-
D
26-
“
“
“
“
“
“
“
“
Z
13+
Z
36+
a
13-
a
36-
b
12+
b
37+
c
12-
c
37-
“
“
“
“
“
“
“
“
z
1+
z
48+
AA
1-
AA
48-
