EN - 15
CAT 3 6 Putting into operation
6.2 Adjusting the TCP
1 Loosen the hexagon nut (1) and adjust the torch mount (3) to the desired
TCP.
2 Tighten the hexagon nut (1).
To secure the adjusted position proceed as follows:
3 Drill a Ø
5.8 mm bore hole into the bracket (6) and use a reamer to ream
the bore for the dowel screw (2).
4 Use a dowel screw (2) and a hexagon nut (4) to secure both brackets (6)
and (3).
4 Scope of delivery on page EN-11
1 Hexagon nut M8
2 Dowel screw 6H7
3 Torch mount
4 Hexagon nut M6
5 Dowel screw M8
6 Bracket

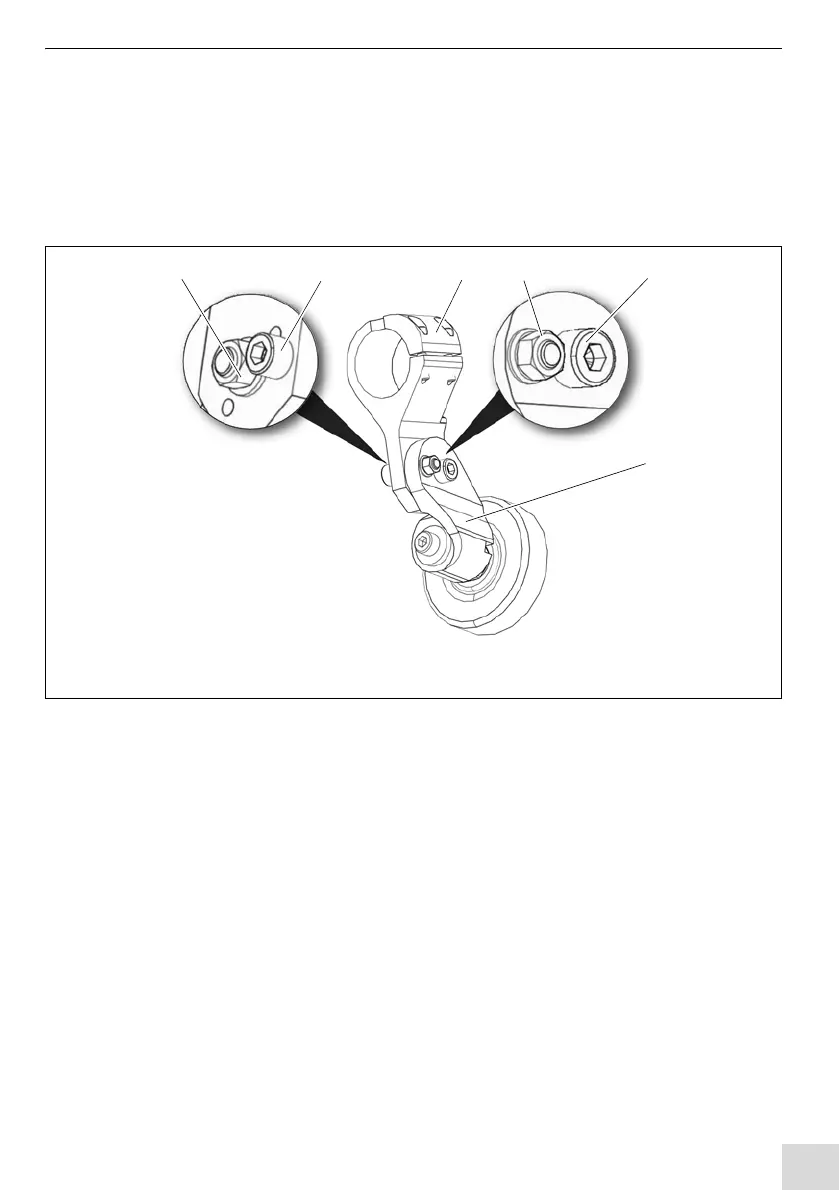

Fig. 8 Adjusting the TCP
