6 Putting into operation CAT 3
6.3 Connecting the helix cable
1 Plug the helix cable (4) into the connector housing (6) using the angled
male connector (5).
2 Plug the flange plug (2) into the torch (3) and the cable assembly (1).
3 Lock both connectors to prevent their accidental disconnection.
For the switching function please see the functional diagram.
Fig. 6 Functional diagram on page EN-12
1 Cable assembly
2 Flange plug
3 Torch
4 Helix cable
5 Angled male connector
6 CAT 3 connector housing

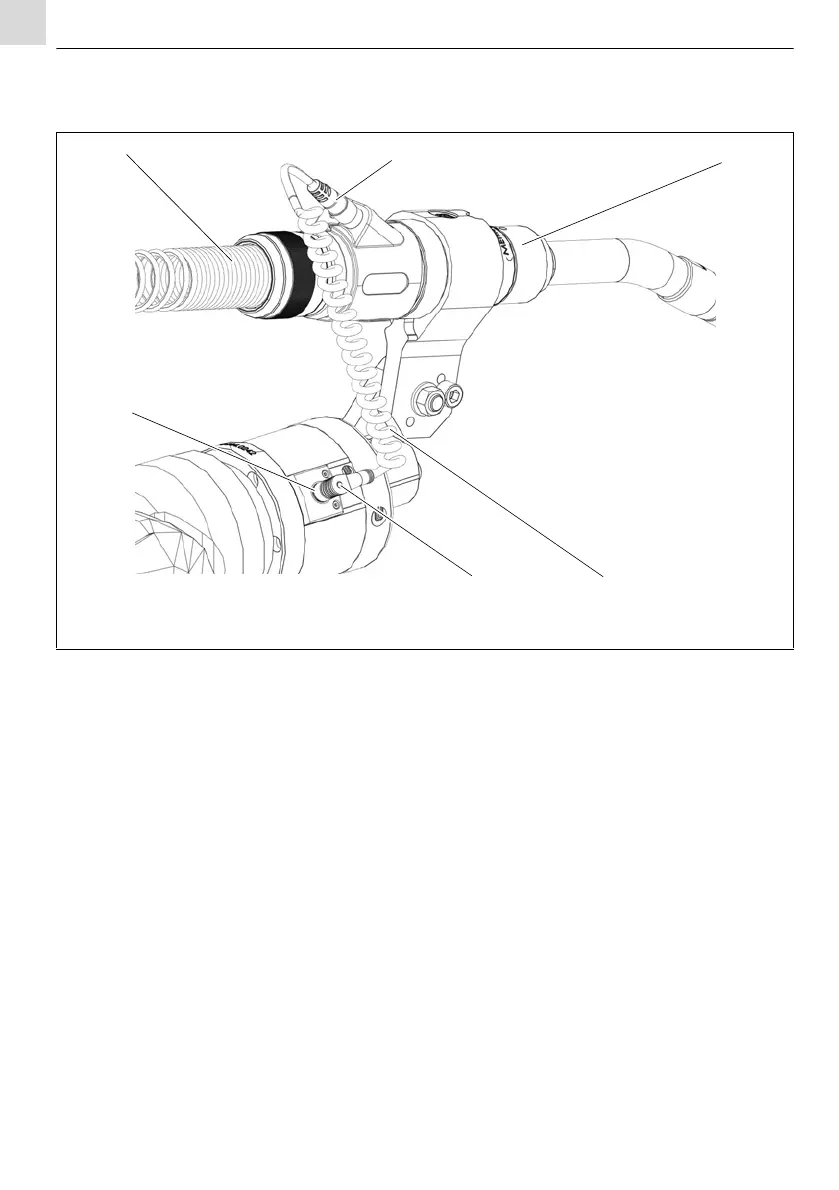

Fig. 9 Connecting the helix cable
