Gene r a l i n fo r m ati o n | Tr a n sp o r t ing t he c h ai n h oi st
13
Ambient conditions for operation:
Ambient temperature
(for normal operation)
-10 °C to +40 °C
Ambient temperature
(for reduced duty cycle)
+40 °C to +80 °C
Housing IP 55
Insulation class F
MALFUNCTION!
If the chain hoist is used in ambient
temperatures above 55 °C, sporadic
malfunctions could occur.
Reduce the duty cycle of the chain
hoist.
Fuses:
─ 3x ceramic tube fuse 32x6.3
10A, slow-blow
Noise emissions:
Size
LP, m dB(A) at
distance of 3 m
Sound pressure
level LW, m dB(A)
GM2 55 72
GM4 55 72
GM6 61 78
GM8 62 79
Table: Noise emissions based on DIN 45635, Part 61
following the substitution process with an acoustic
power source
In the table, the sound pressure level LP is specified
for a distance of 3 m from the chain hoist. To calculate
the sound pressure level LW, the sound pressure level
at any distance may be used.

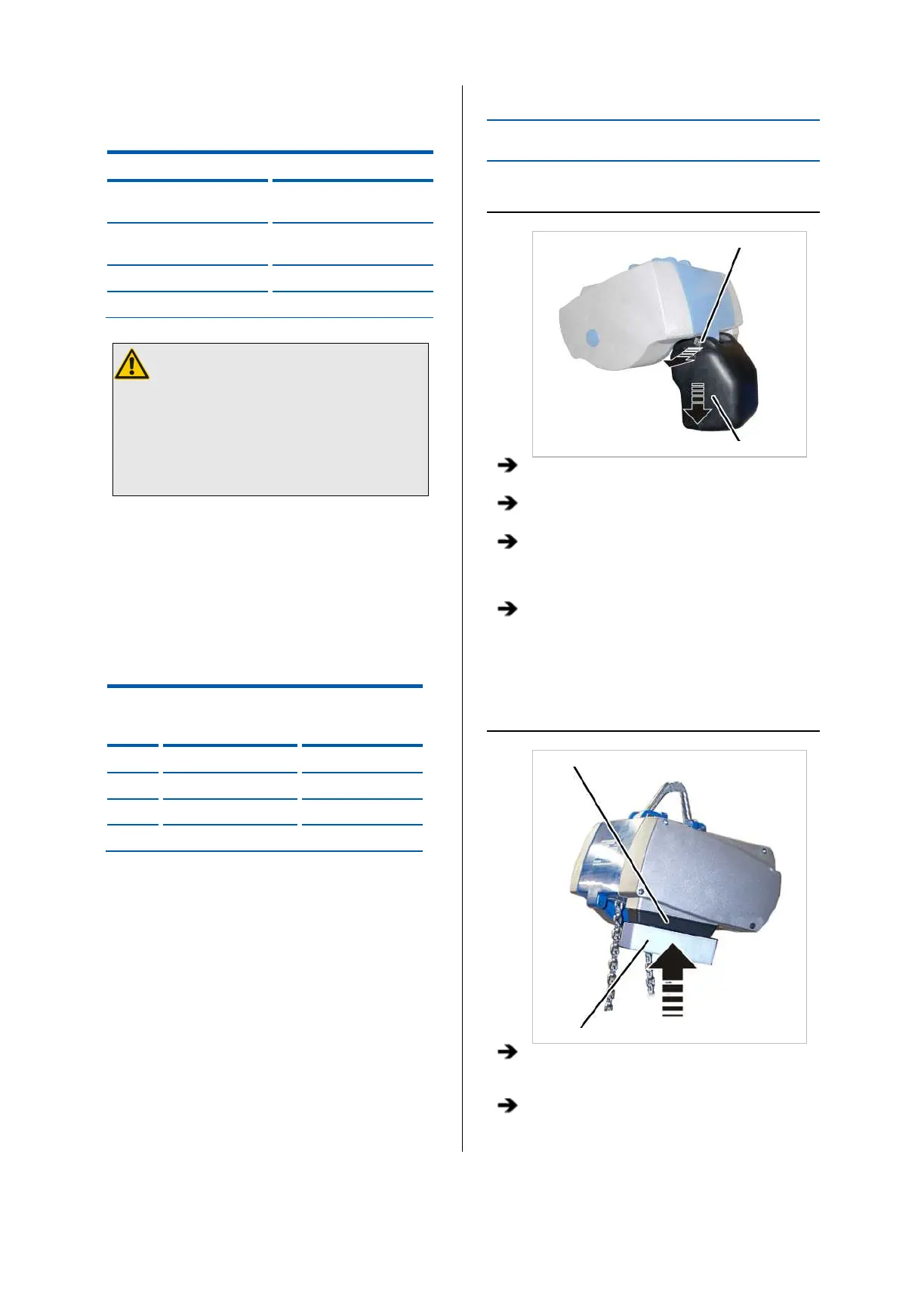

TRANSPORTING THE CHAIN HOIST
REMOVING THE CHAIN BOX
Bolt
Chain box
Release the SL safety clip(s) (1x or 2x) from
the bolt.
Hold the chain box firmly and pull out the
bolt(s) (1x or 2x).
Remove the chain box.
Place the detached chain box next to the chain
hoist.
PROTECTING PLUG-IN
CONNECTIONS
Socket
Transport guard
Attach the transport guard (from the original
packaging or, for example, firm cardboard) to
the socket.
Take care that the socket is not damaged and
set the chain hoist down.
