Abus ABUCompact GM2 - Hook Assembly; O V E R V I E W O F S C R E W T I G H T E N I N G T O R Q U E; Motor Cover

Ma in t e n an c e | Ove r vi e w of s cre w t i gh t eni n g to r q u e s
87
ONLY FOR SINGLE-FALL CHAIN
HOISTS

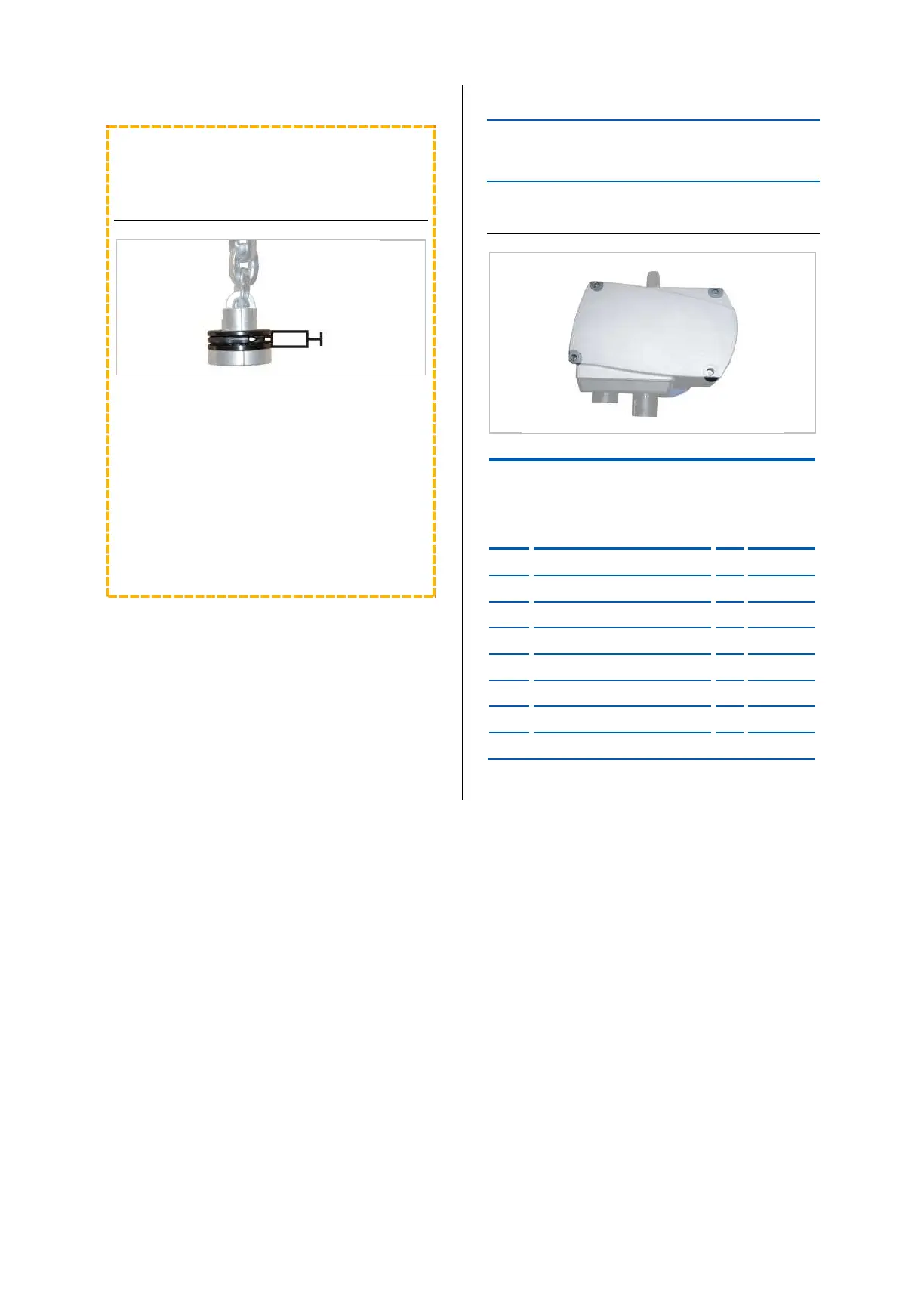

HOOK ASSEMBLY
On-site lubrication with “High-Lub LT1 EP”, ABUS
item number 318490.
Lubrication ex works with “High-Lub LT1 EP”,
ABUS item number 317880.
Lubricate the hook assembly during:
─ Exchanging the chain and chain sprocket
For details, see “Installing the hook assembly”,
page 55.
OVERVIEW OF SCREW TIGHTENING
TORQUES
MOTOR COVER
Size Type, size and length Number Tightening torque
GM2 Fillister-head screw M5x65 3x 4 Nm
GM2 Fillister-head screw M5x45 1x 4 Nm
GM4 Fillister-head screw M5x60 3x 4 Nm
GM4 Fillister-head screw M5x50 1x 4 Nm
GM6 Fillister-head screw M8x110 3x 15 Nm
GM6 Fillister-head screw M8x60 1x 15 Nm
GM8 Fillister-head screw M10x95 3x 20 Nm
GM8 Fillister-head screw M10x50 1x 20 Nm
