Ma in t e nan c e | Repl a cin g t h e bra k e ro tor

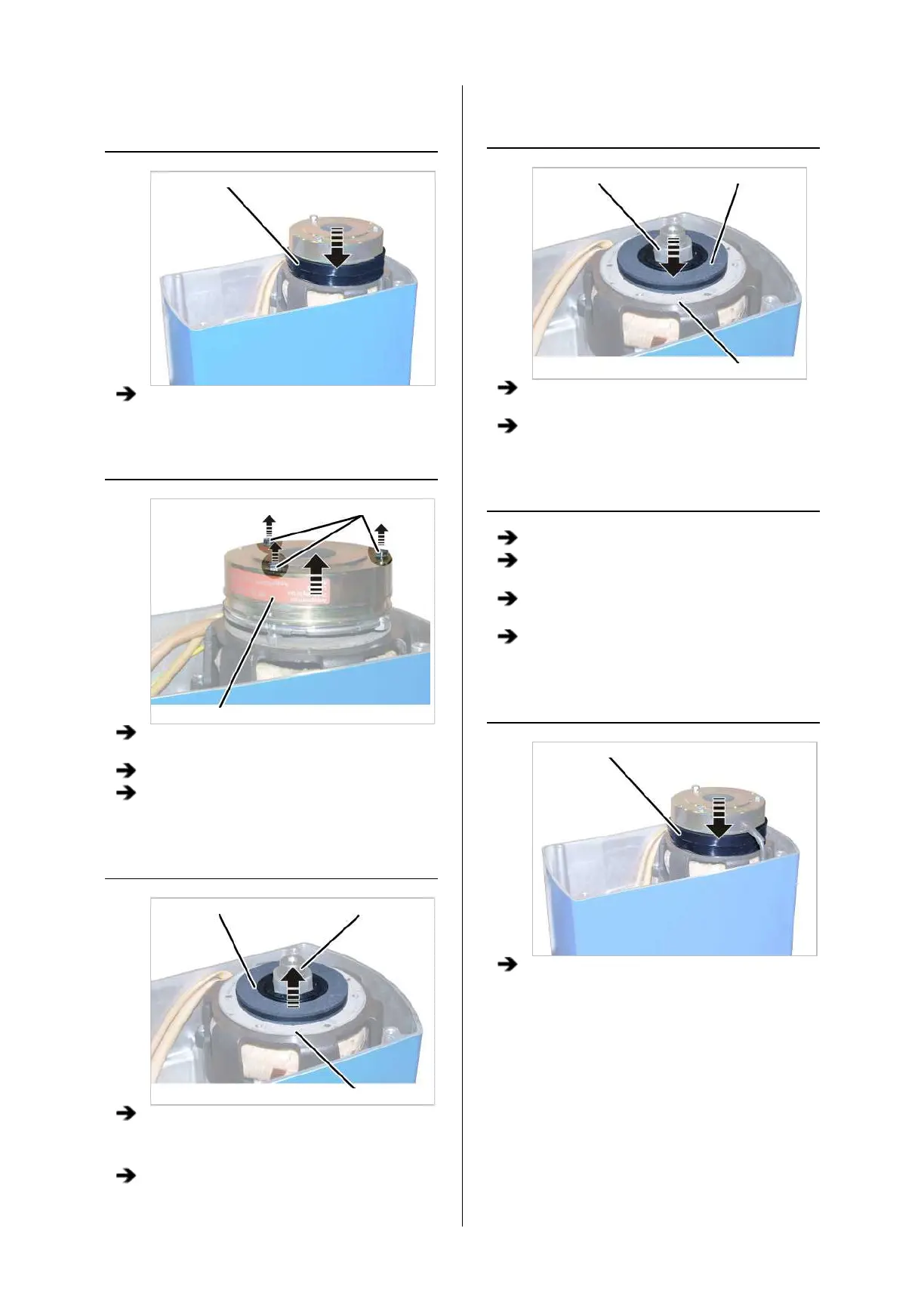

UNCOVERING THE BRAKE

Dust guard ring

Pull off the dust guard ring.

DISASSEMBLING THE MAGNET BODY

Hexagon head screws

Magnet body

Disconnect the power supply of the magnet

body.

Release the hexagon head screws M6x70 (3x).

Pull the magnet body from the motor shaft.

REMOVING THE OLD BRAKE ROTOR

Brake rotor Hub

Friction disc

Pull the brake rotor from the hub.

● The friction disc lies loosely against the brake

bearing shield.

Do not remove the friction disc.

INSTALLING THE NEW BRAKE

ROTOR

Hub Brake rotor

Friction disc

Check whether the friction disc is still lying on

the brake bearing shield.

Push the new brake rotor onto the hub.

MOUNTING THE MAGNET BODY

Slide the magnet body onto the motor shaft.

Screw on the hexagon head screws (3x).

7 Nm.

Then the air gap must be readjusted. See

“Setting the air gap on the brake”, page 67.

Connect the power supply of the magnet body.

COVERING THE BRAKE

Dust guard ring

Pull the dust guard ring over the brake.
