Ins t a ll i n g a n d co n n ec t i n g | I n s tal l i ng t h e c h a in h o i s t
17

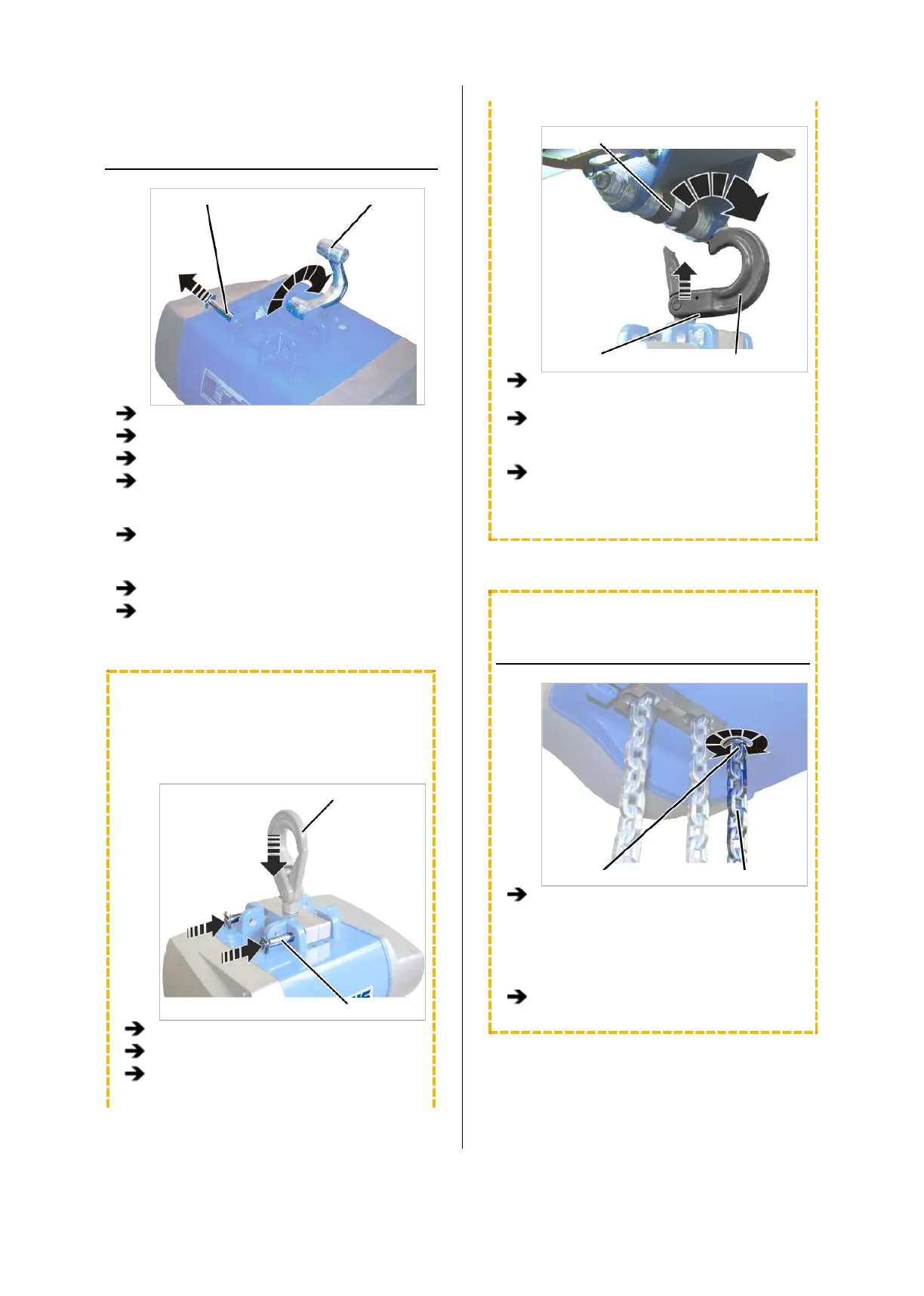

FOLDING OUT THE SUSPENSION
BRACKET AND ATTACHING THE
CHAIN HOIST
Bolt Suspension bracket
Detach the SL safety clip from the bolt.
Pull out the bolt.
Fold out the suspension bracket.
Lift the chain hoist and attach it under the
supporting structure, under the trolley or under
the crane.
Fold the suspension bracket over an
appropriate anchorage or the travelling gear
bolt of the trolley.
Insert the bolt.
Secure bolt with SL safety clip.
ONLY WITH SUSPENSION HOOK
If required, the chain hoist can be installed with an
optional suspension hook.
Suspension hook
Bolt
Insert suspension hook.
Insert bolts (2x).
Secure bolts with SL safety clips (2x).
Supporting structure
Safety device Suspension hook
Undo the safety device and open the
suspension hook.
Lift the chain hoist and attach it under the
supporting structure, under the trolley or
under the crane.
Close the suspension hook over an
appropriate anchorage or the travelling gear
bolt of the trolley.
ONLY FOR GM8
TURN SECOND FALL STRAIGHT
Chain anchor point Second fall
Check the chain anchor point: The second
fall should extend straight to the bottom
block and not be twisted.
If necessary:
Turn the chain anchor point.
