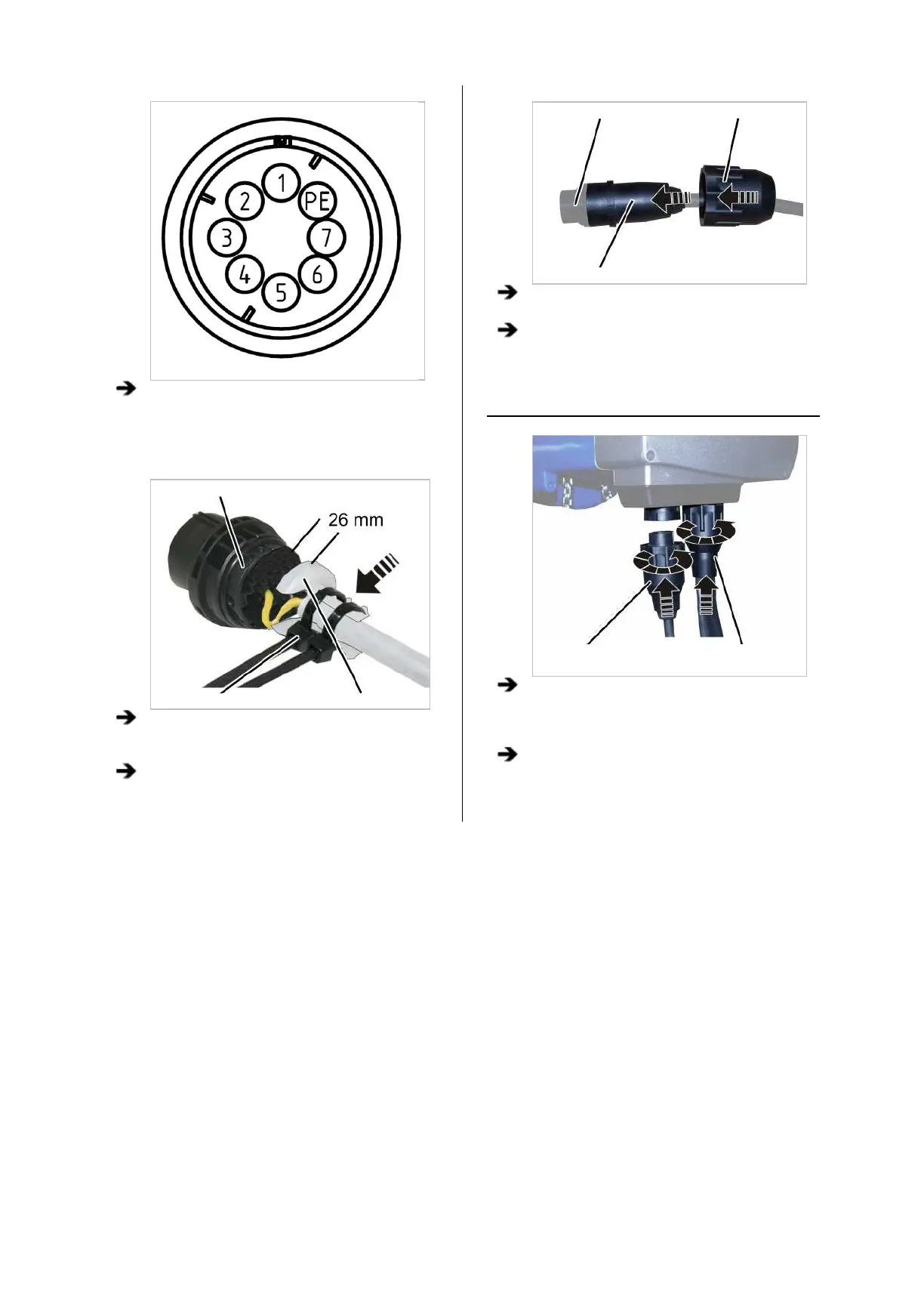

Ins t a ll i n g a n d co n n ec t i n g | Co n n ec t i ng t h e c hai n h o i st
19
Check that the assignment is correct (view of
drawing from front) and connect the wires to
the bush insert.
Bush insert
Cable ties Strain reliever
Slide the strain reliever onto the connection
cable so that 26 mm clearance remains
between the strain reliever and the bush insert.
Fasten the strain reliever with cable ties (2x).
Bush insert Bayonet nut
Connector housing
Press the connector housing onto the bush
insert until it clicks.
Slide the bayonet nut over it.
CONNECTING THE CHAIN HOIST
Bayonet coupling of
connection cable
Bayonet connector of
control cable
Insert the bayonet coupling of the connection
cable and the bayonet connector of the control
cable. Due to a notch, the plug-in connections
will only fit together in one position.
Slide on and tighten the bayonet nuts.
