Ins t a ll i n g a n d co n n ec t i n g | Se t t ing t h e i nte r m ed i at e s wit c h in g poi n t o f an ele c tron i c h o i st l i mi t
swi t c h
29
Setting the intermediate switching point:

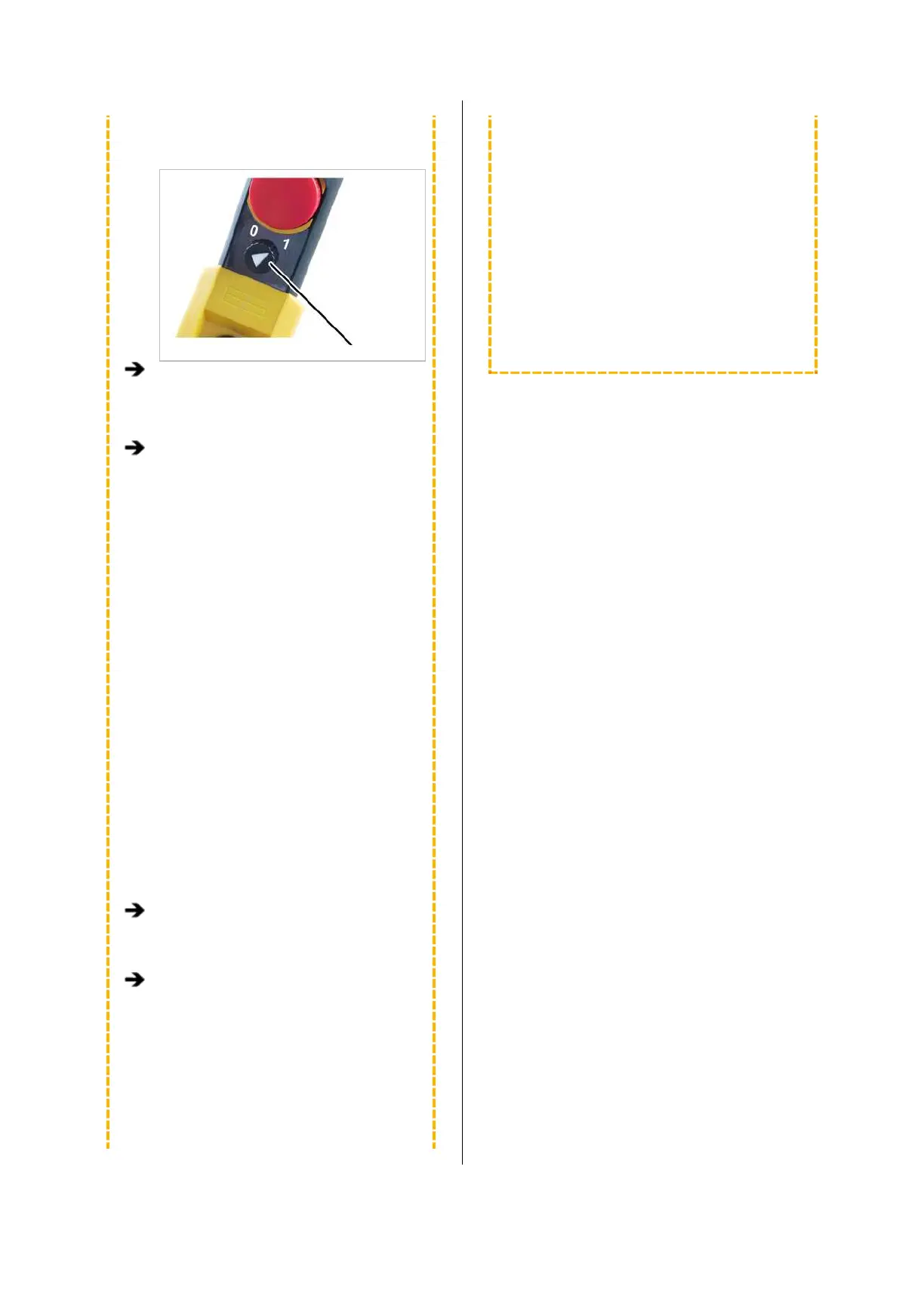

Rotary switch
Set the rotary switch on the pendant control
to “1”.
● The “Set intermediate switching point”
function is activated.
Set the intermediate switching point in the
same way as with the upper or lower
switching point. See “Setting the switching
points of an electronic hoist limit switch”,
page 25.
─ Move to the intermediate switching point.
─ The last move command before teach-in is
irrelevant.
─ Only with teach-in module: Remove the
pendant control, plug in the teach-in
module, wait 5 seconds, then remove the
teach-in module and insert the pendant
control.
Only with pendant control with teach-in
button: Press teach-in button for 5 seconds.
Only with ABURemote AC with teach-in:
Press “teach-in” direct access button (T with
arrow) for 5 seconds.
Deleting the intermediate switching point:
To prevent the load hook from stopping at the
intermediate switching point, there are two options:
Delete all switching points. See “Deleting all
switching points on the electronic hoist limit
switch” page 64. This will also delete the
saved intermediate switching point.
Reprogramme the intermediate switching
point to set a hook position that is outside
the switching points, for example, below the
lower switching point. To do this, the saved
upper or lower switching point must be
overrun when making the setting. See
“Setting the switching points of an electronic
hoist limit switch”, page 25.
Moving to the intermediate switching
point:
The rotary switch is only required to set the
intermediate switching point.
In normal operation, the chain hoist brakes as soon
as the load hook approaches the intermediate
switching point and halts there. The intermediate
switching point can then be overrun by releasing
the button for lifting/lowering and pressing it again
(stop-and-go).
