Main t e nan c e | W i rin g d ia g r a ms
95

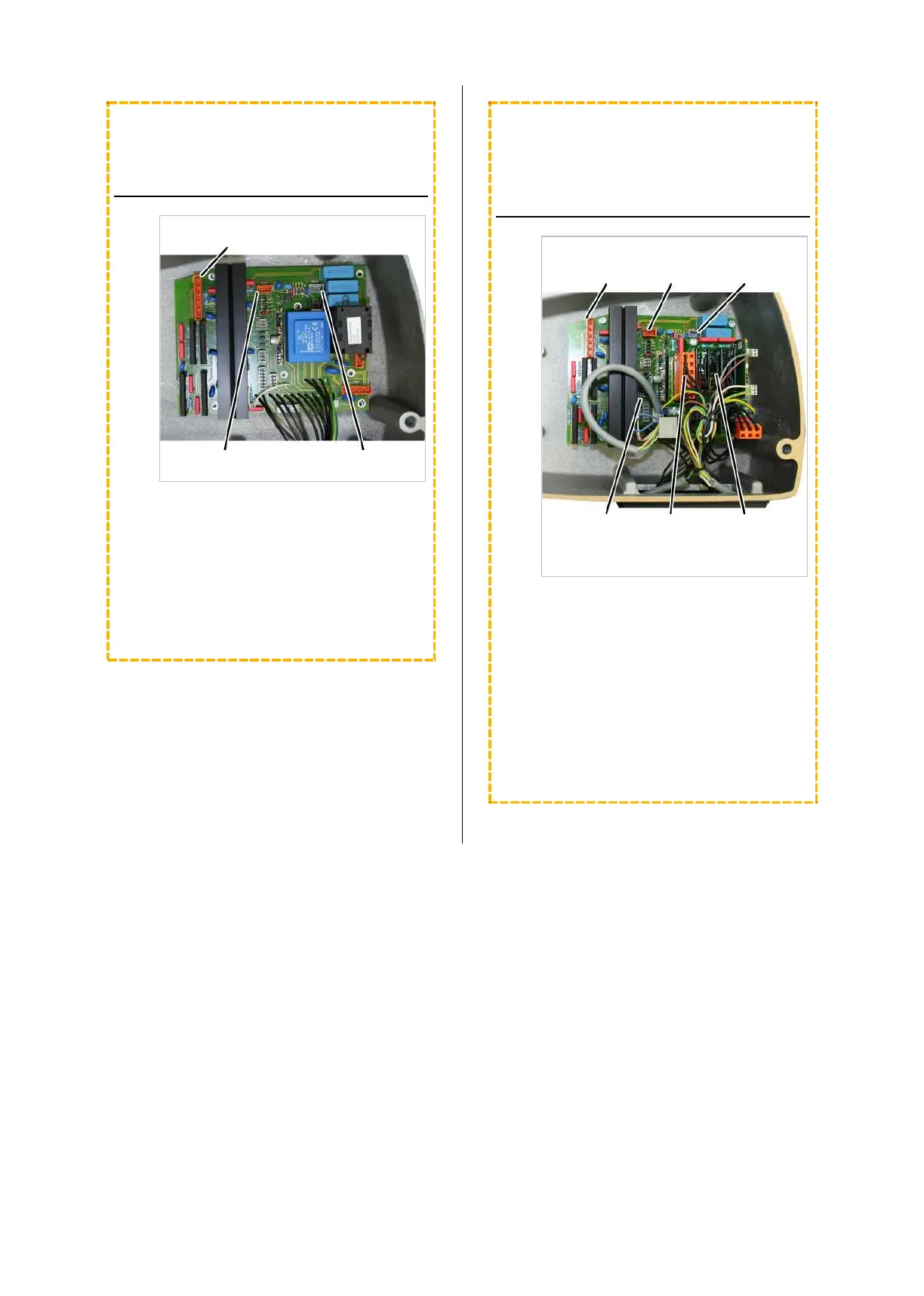

ONLY FOR GM6 AND GM8 WITH
ELECTRONIC CONTROL
CONTROL IN THE MOTOR COVER
Pin plug for hoist
motor
Pin plug for star
points
Pin plug for brake
─ The electricity for the hoist motor is
controlled through a semiconductor relay
which is switched from a 48 V control
voltage.
─ The control voltage can be switched using a
pendant control or radio remote control.
─ The control consists of a supply PCB on
which there are also semiconductor relays.
ONLY FOR GM6 AND GM8 WITH
ELECTRONIC CONTROL AND
ELECTRIC HOIST TROLLEY
CONTROL IN THE MOTOR COVER
Pin plug for
hoist motor
Pin plug
for star
points
Pin plug for
brake
Supply PCB Pin plug
for trolley
travel
motor
Semiconductor
relay PCB
─ The electricity for the hoist motor is
controlled through a semiconductor relay
which is switched from a 48 V control
voltage.
─ The control voltage can be switched using a
pendant control or radio remote control.
─ The control consists of a supply PCB on
which there are also semiconductor relays
for the control of the hoist motor and a
semiconductor relay PCB attached above
for the control of the trolley travel motor.
