135

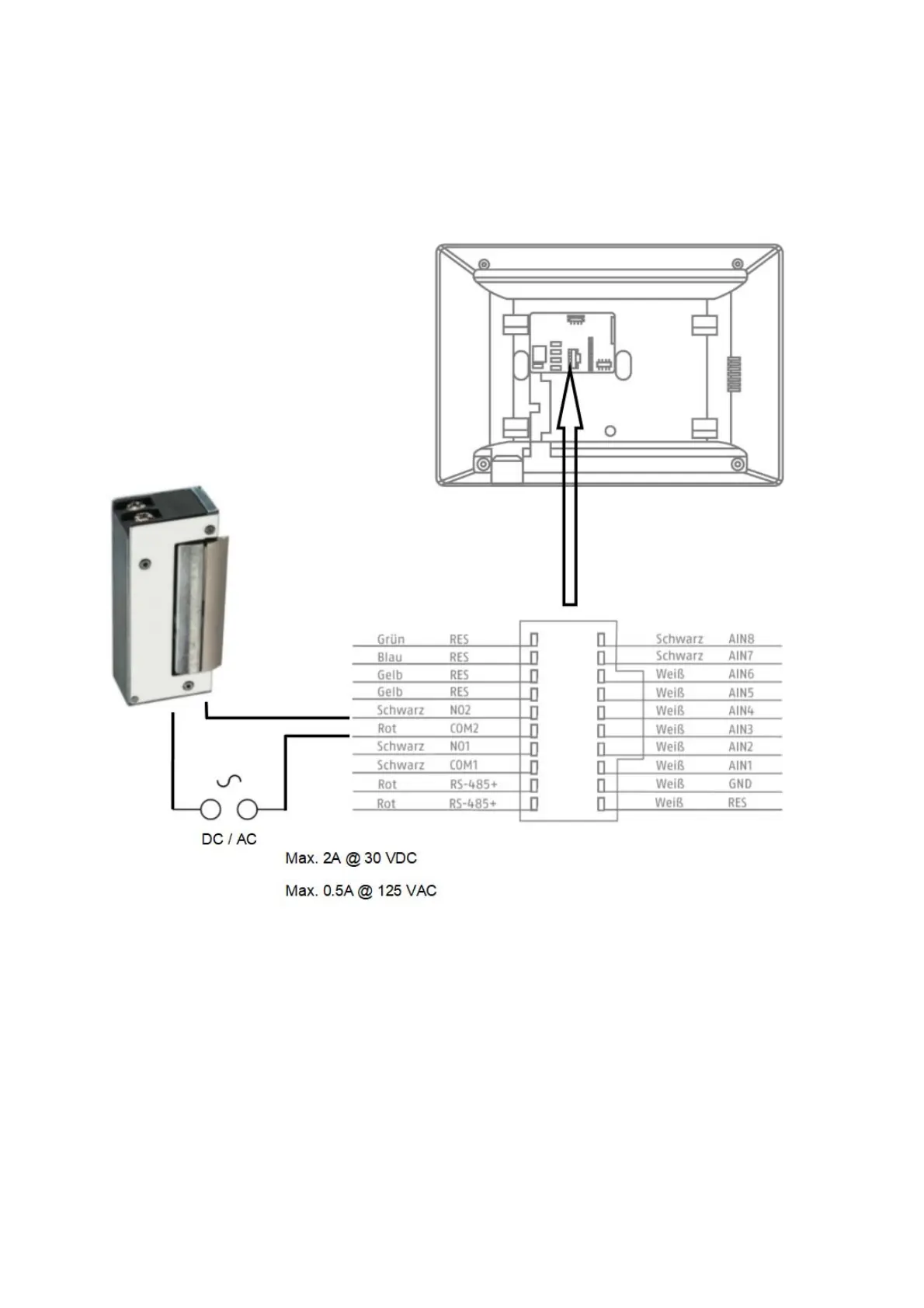

To use the relay on the monitor, please enable “relay 2” under "relay configuration” in the monitor
menu. Now another “key” symbol labelled “3” will appear in the monitor. Labels “1” and “2” are
reserved for the door video module relays.
Relay “3” on the monitor can only be switched directly via the monitor, and not via the ABUS
LINK STATION app.
9.7 Connecting floor call buttons to the main monitor
The floor button (call button directly on the front door of a multi-family home) can be connected
directly to the monitor. Directly wired to alarm input 1, the monitor can emit a bell signal and
signal to the customer that someone has rung the upper front door.
Note: The floor button ring tone cannot be changed. It is different from the call button on the door
video module so that it is obvious where the call originated. The floor button does not trigger an
interaction on the monitor. Only a short ring tone will sound.
