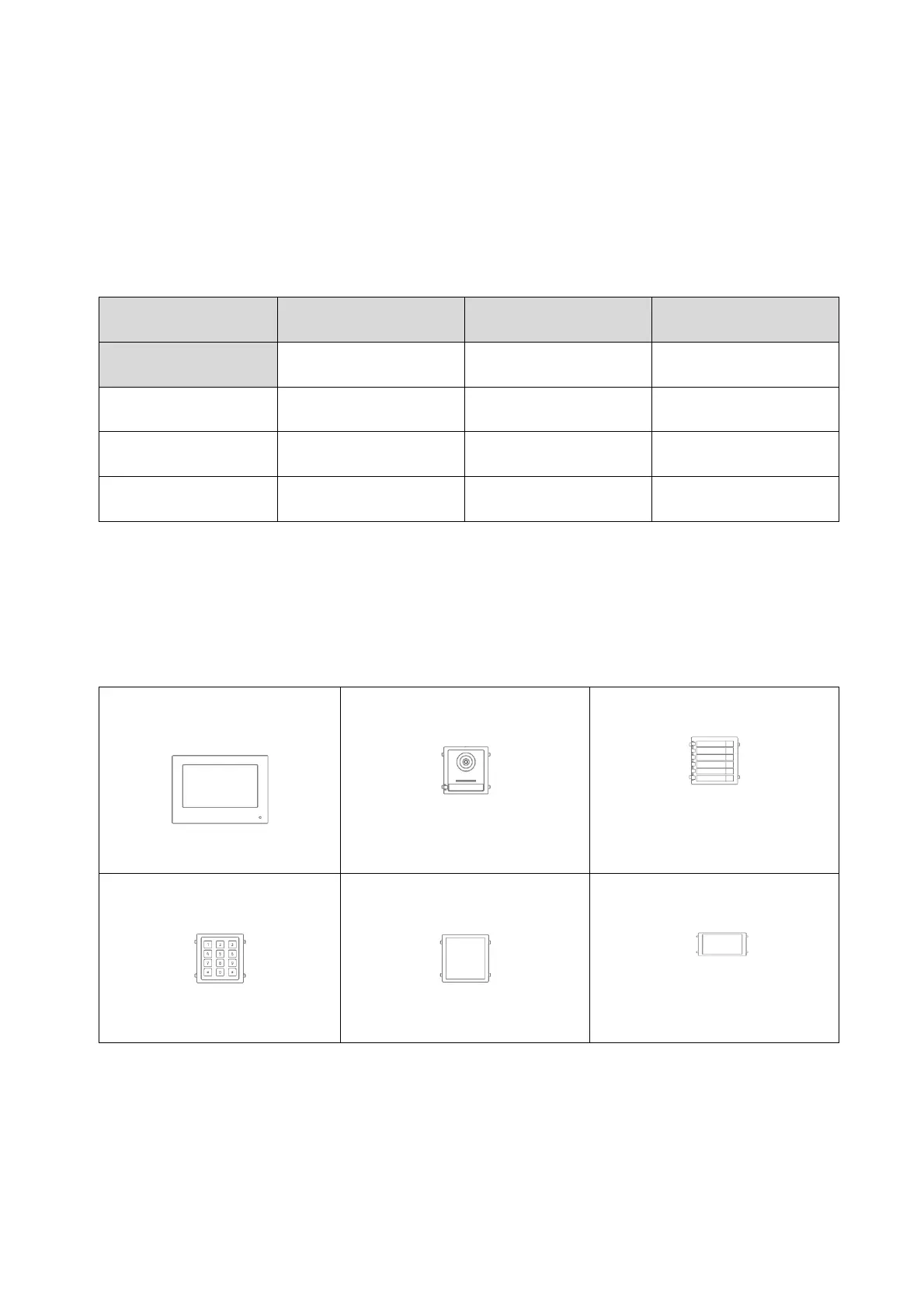

3.1.2 Recommended cable types
Select the type of cable based on the distance between the video module, distributor and
monitor.
2-wire video module (TVHS20010 / TVHS20010S)
2-wire monitor (TVHS20210)
2-wire distributor (TVHS20310)
Cable type
24AWG (10 Ω per
100m)
20AWG (7 Ω per
100m)
18AWG (4 Ω per
100m)
Cable length
TVHS20310 /
TVHS20310
Max. 60 m Max. 60 m Max. 60 m
TVHS20010(S) /
TVHS20310
Max. 35 m Max. 60 m Max. 60 m
TVHS20210 /
TVHS20310
Max. 35 m Max. 60 m Max. 60 m
3.2 IP network variant
3.2.1 Components
TVHS20200 / TVHS20220
IP 7"/10” PoE monitor
TVHS20000 / TVHS20000S
IP video module
TVHS20020 / TVHS20020S
Bell push button
(6 buttons)
TVHS20030 / TVHS20030S
Numeric keypad
TVHS20040
Information module
TVHS10040 / TVHS20340
Security module
