101
English

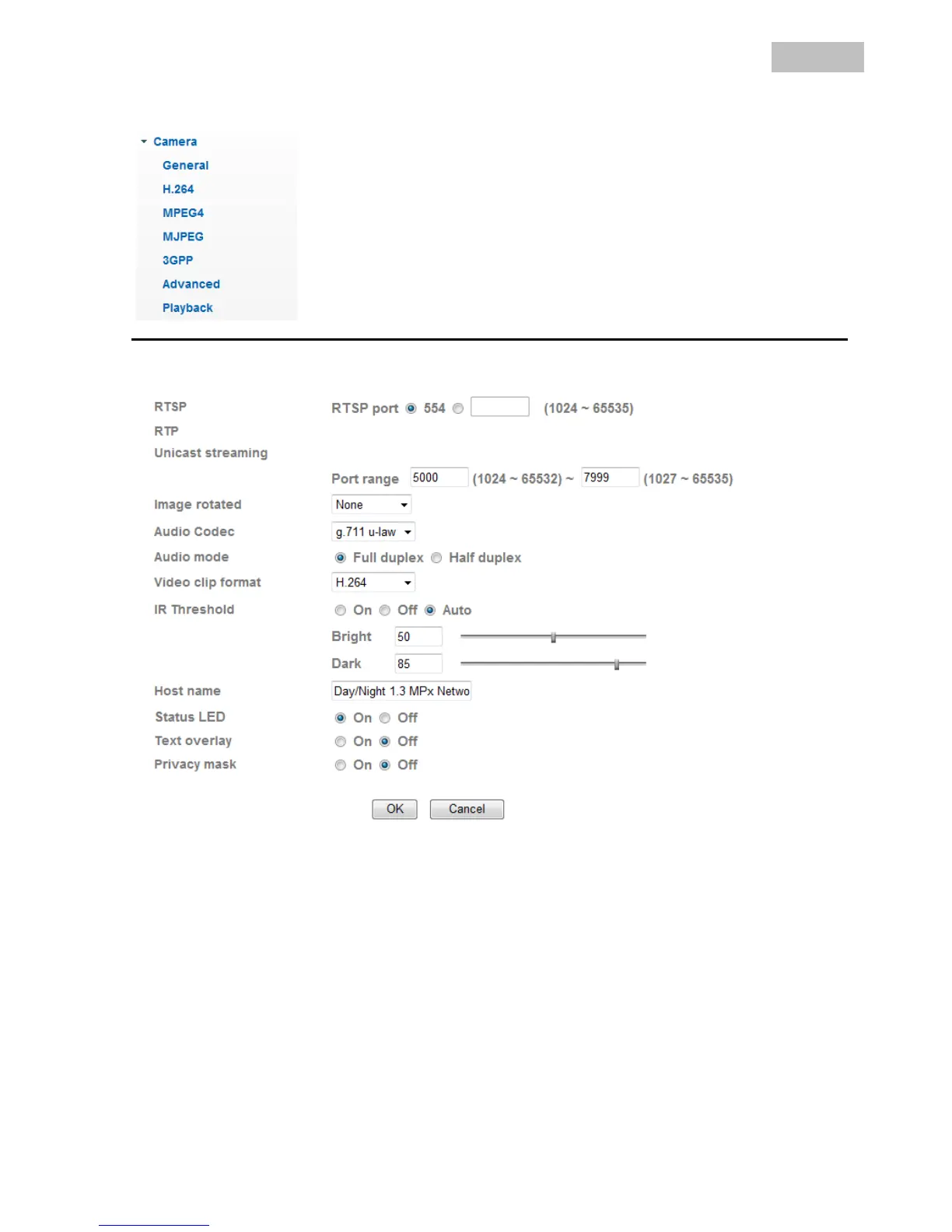

6.2 Camera
General
RTSP: Settings for RTSP transmission.
RTSP port: The standard port for RTSP transmission is 554. Alternatively, this port can have a
value of 1024-65535. If several IP cameras are located in the same subnetwork, then
each camera should have their own unique RTSP port.
RTP: Settings for the RTP transmission (Real Time Protocol).
Unicast streaming: When using Unicast streaming, the video and audio files are transmitted to a recipient
who requested the data.
Port range: The standard port range for RTP Unicast streaming is 5000-7999. Alternatively, the
port range can have a value of 1027-65535.
Image rotated: Settings for image orientation.
Flip: The image is rotated by 180°.
Mirror: The image is mirrored.
Flip + mirror: Select this option when the camera has been installed upside down.
Audio Codec: Settings for the audio codec used.
