9: Performance Assurance Agent

Detailed PAA results

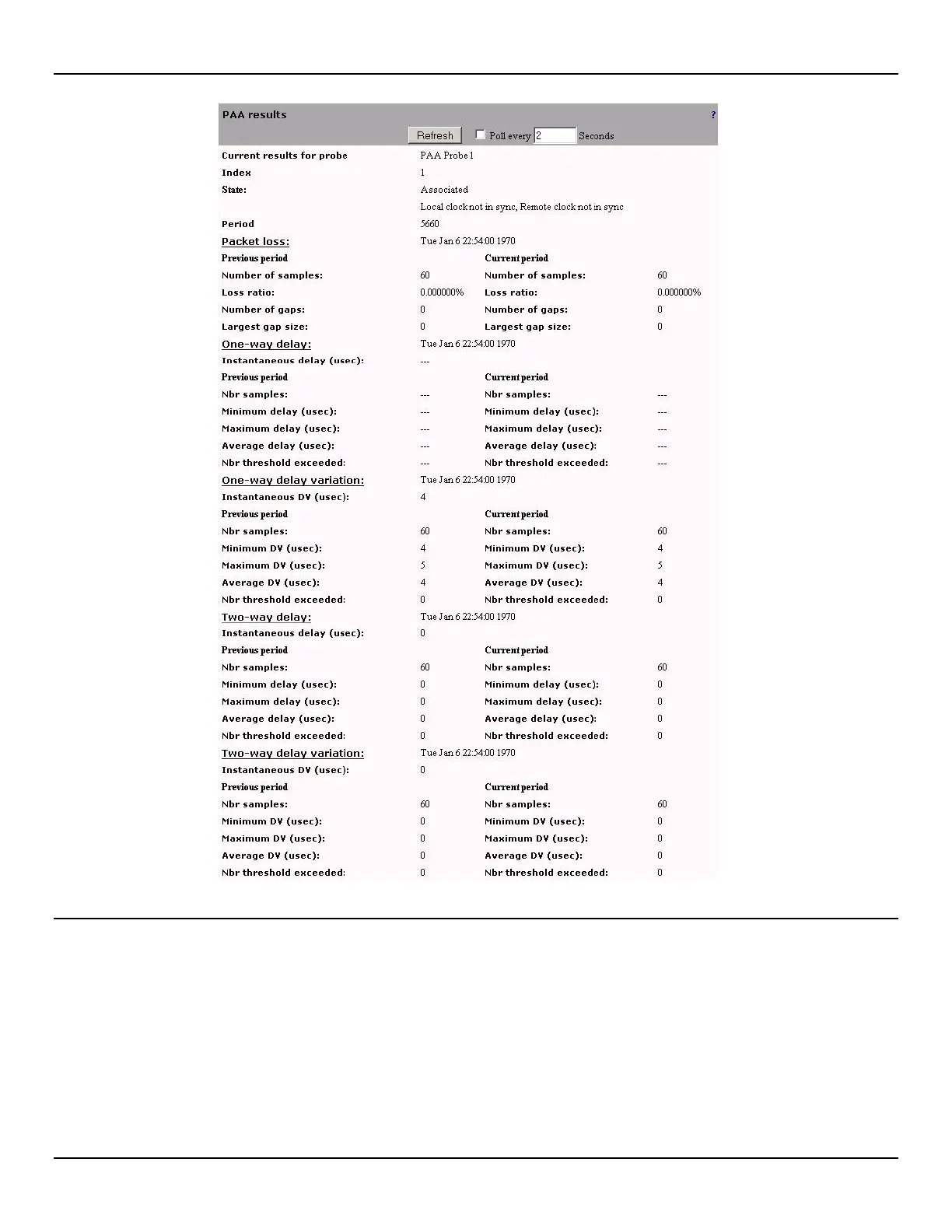

Clicking a probe name on the PAA > results page presents more detailed information.

Current results for probe: Unique name assigned to the probe.

Index: A unique identifier assigned to the probe.

State: Indicates the probe's current state. Possible values are:
