Accu-Chek Compact Plus Reference Manual

103
Using the meter as an electronic notebook
5

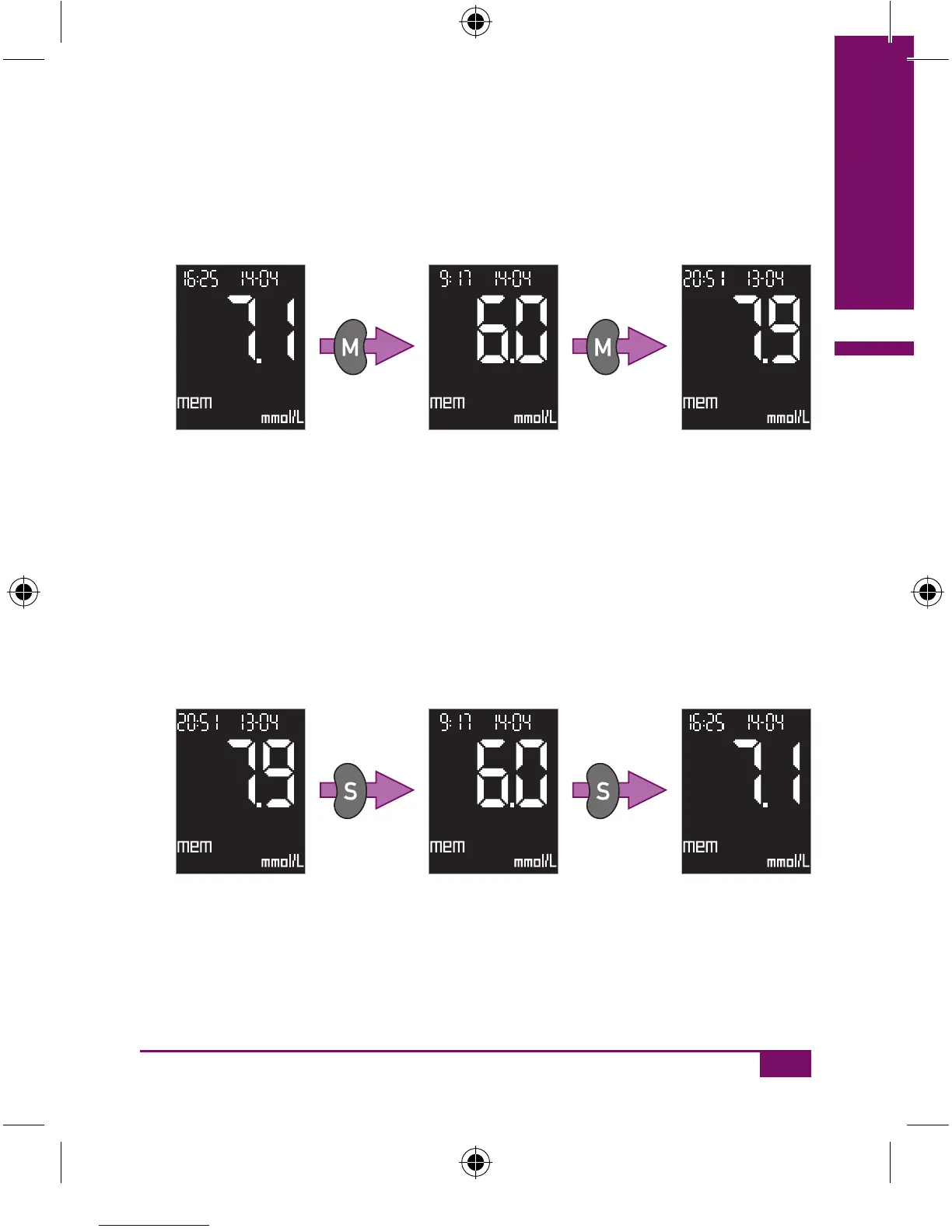

Retrieving older results from memory:
 Press the M button once to move towards the next older result
saved.
With the M button you can move back until you reach the oldest result
(max. 500 results). If you press and hold down the M button, the results
are fast-scrolled, starting slowly and then speeding up.
To move back again towards the most recently saved results:
 Press the S button. To fast-scroll, press and hold down the S button.
AC_CP_LCM_Manual_EN-UK final.indd 103_CP_LCM_Manual_EN-UK final.indd 103 20.6.2007 11:04:2220.6.2007 11:04:22

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
