Accu-Chek Compact Plus Reference Manual

131
Checking your meter
7

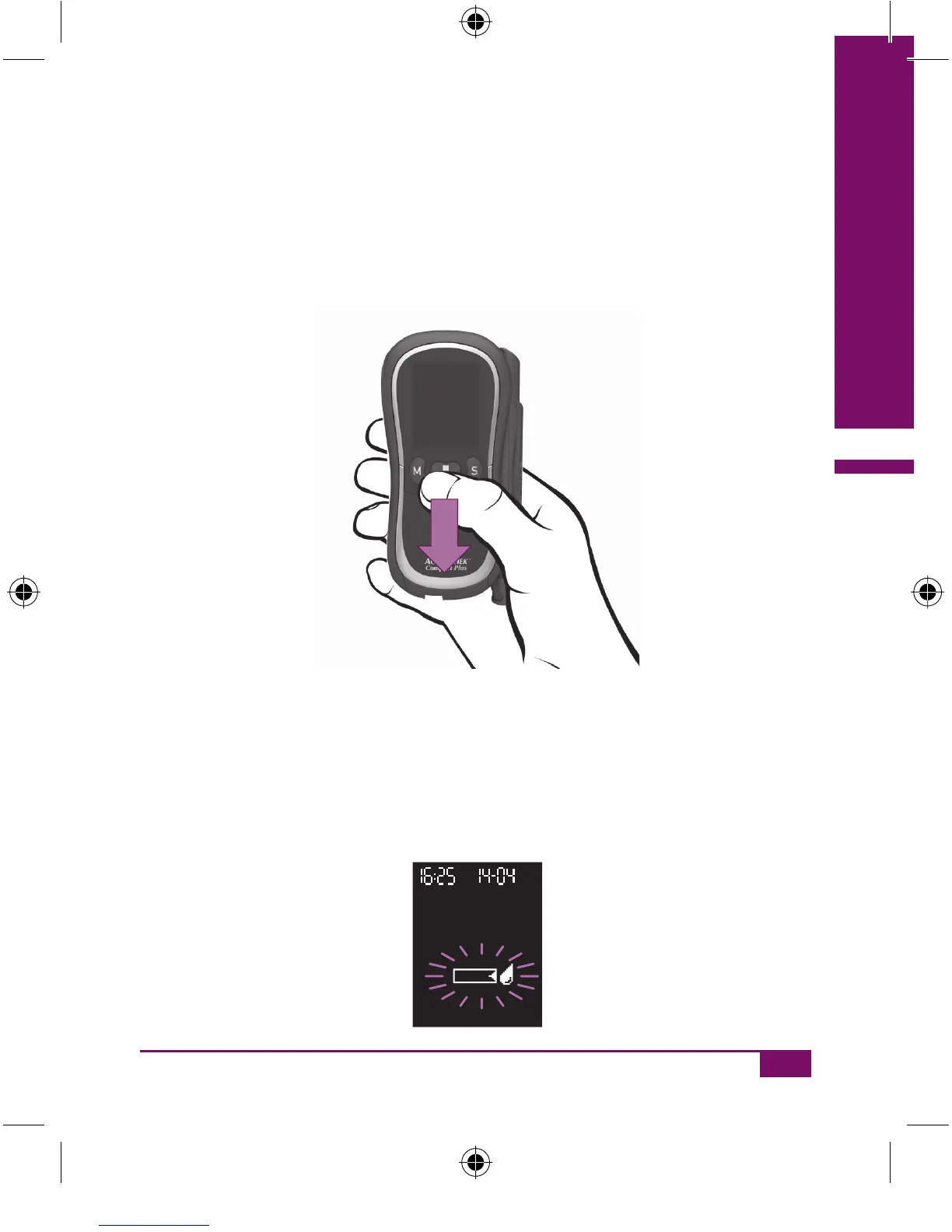

7.2 Performing a performance check
 Read the package insert that came with the control solutions.
 Press the Test button to turn the meter on.
Following the display check (see Chapter 2.2.2) a test strip is automati-
cally advanced, and the test strip symbol and the drop symbol flash in
the display.
AC_CP_LCM_Manual_EN-UK final.indd 131_CP_LCM_Manual_EN-UK final.indd 131 20.6.2007 11:04:2920.6.2007 11:04:29

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
