Accu-Chek Compact Plus Reference Manual

132
Checking your meter
You now have about 5 minutes in which to draw up control solution with
the test strip.
 Take a bottle of control solution.
 Open it and wipe the tip of the dropper with a clean, dry paper towel
in order to remove any dried-on residues.
 Invert the vial and hold it downwards at an angle. Squeeze it gently
until a small drop is suspended from the tip.

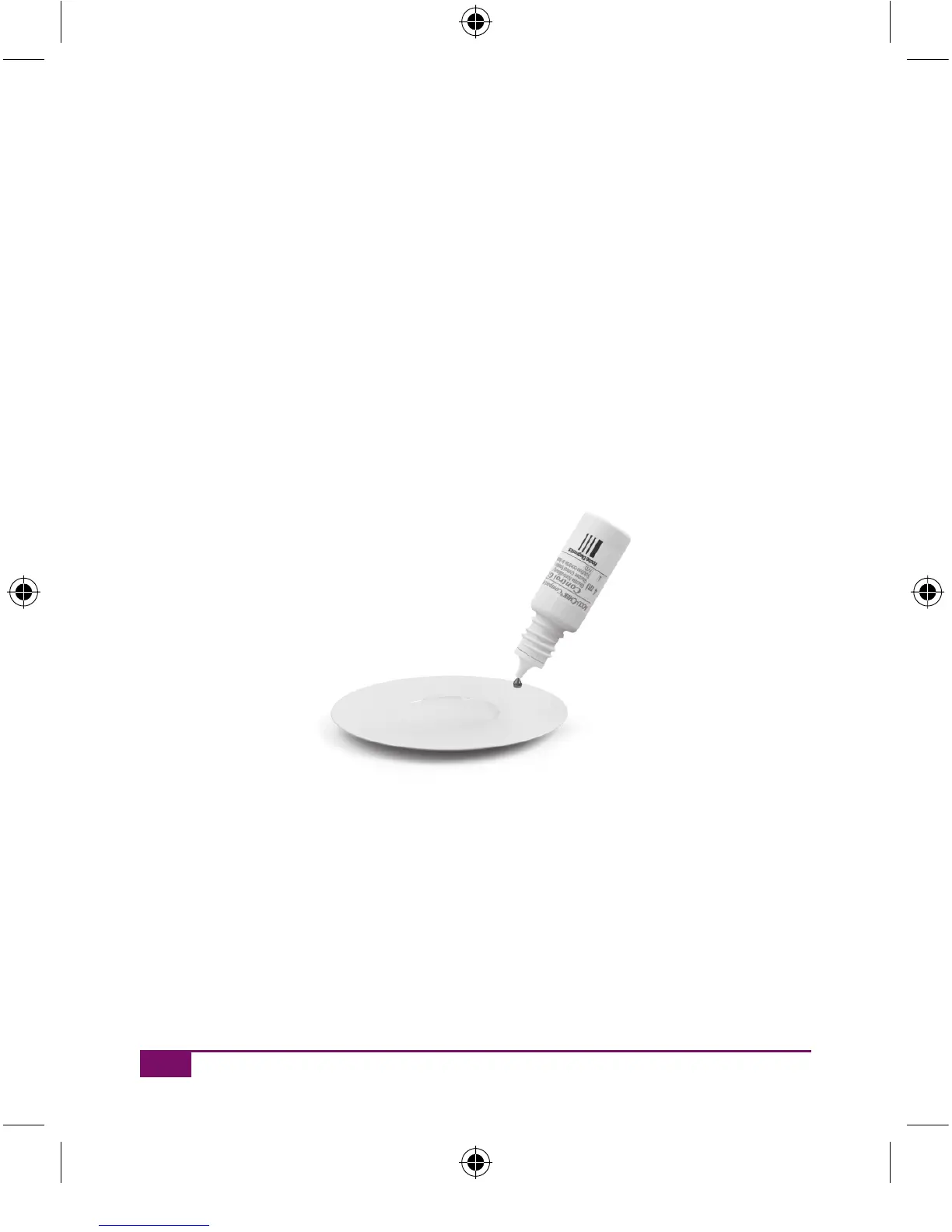

 Apply the drop to the surface of a clean, easily washable object
made of glass, porcelain or stainless steel (e.g. a plate or spoon).
AC_CP_LCM_Manual_EN-UK final.indd 132_CP_LCM_Manual_EN-UK final.indd 132 20.6.2007 11:04:3020.6.2007 11:04:30

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
