Accu-Chek Compact Plus Reference Manual

117
Using the meter as an electronic notebook
5
 Position the meter 5-20 cm away from the infrared window of the
receiving end. Point the two infrared windows towards one another.
 If necessary, start the results download at the receiving end (soft-
ware product or hardware).

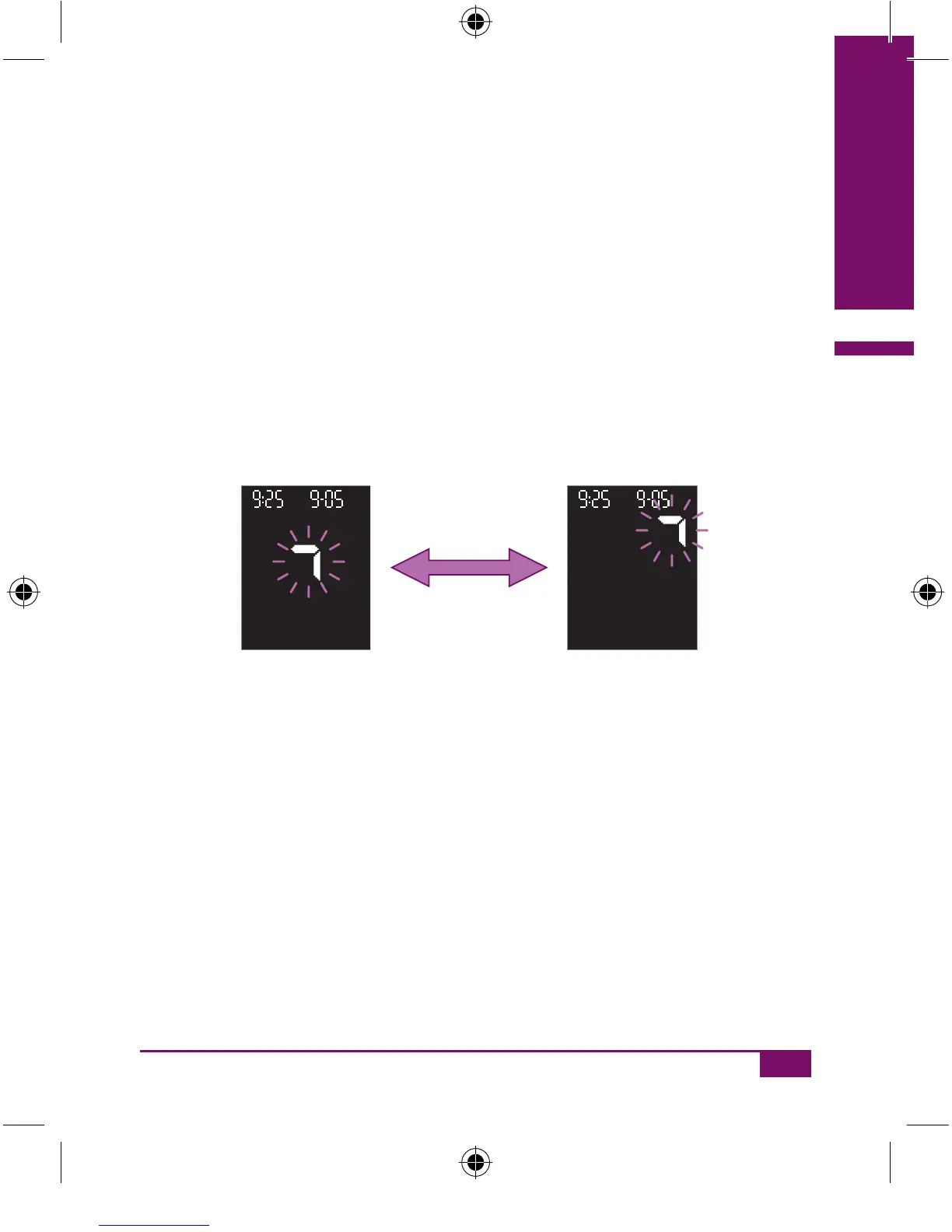

During the download both arrows flashed alternately. During the down-
load only those results that are new to the receiving end, i.e. those have
not yet been downloaded, are sent.
Once downloading has finished, the arrows stop flashing and the meter
is automatically turned off by the receiving end.
If the meter is not turned off, press the Test button to turn it off.
AC_CP_LCM_Manual_EN-UK final.indd 117_CP_LCM_Manual_EN-UK final.indd 117 20.6.2007 11:04:2620.6.2007 11:04:26

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
