Accu-Chek Compact Plus Reference Manual

46
Settings
There are two types of beep tone, differing in pitch. The pitch for a hypo
indicator or an error message is higher than that heard in the other
cases listed above.
When Acoustic Mode is turned on, the meter guides you through the
blood glucose test using the beep tones mentioned above; it also
announces the result as a series of beeps (see Chapter 6).

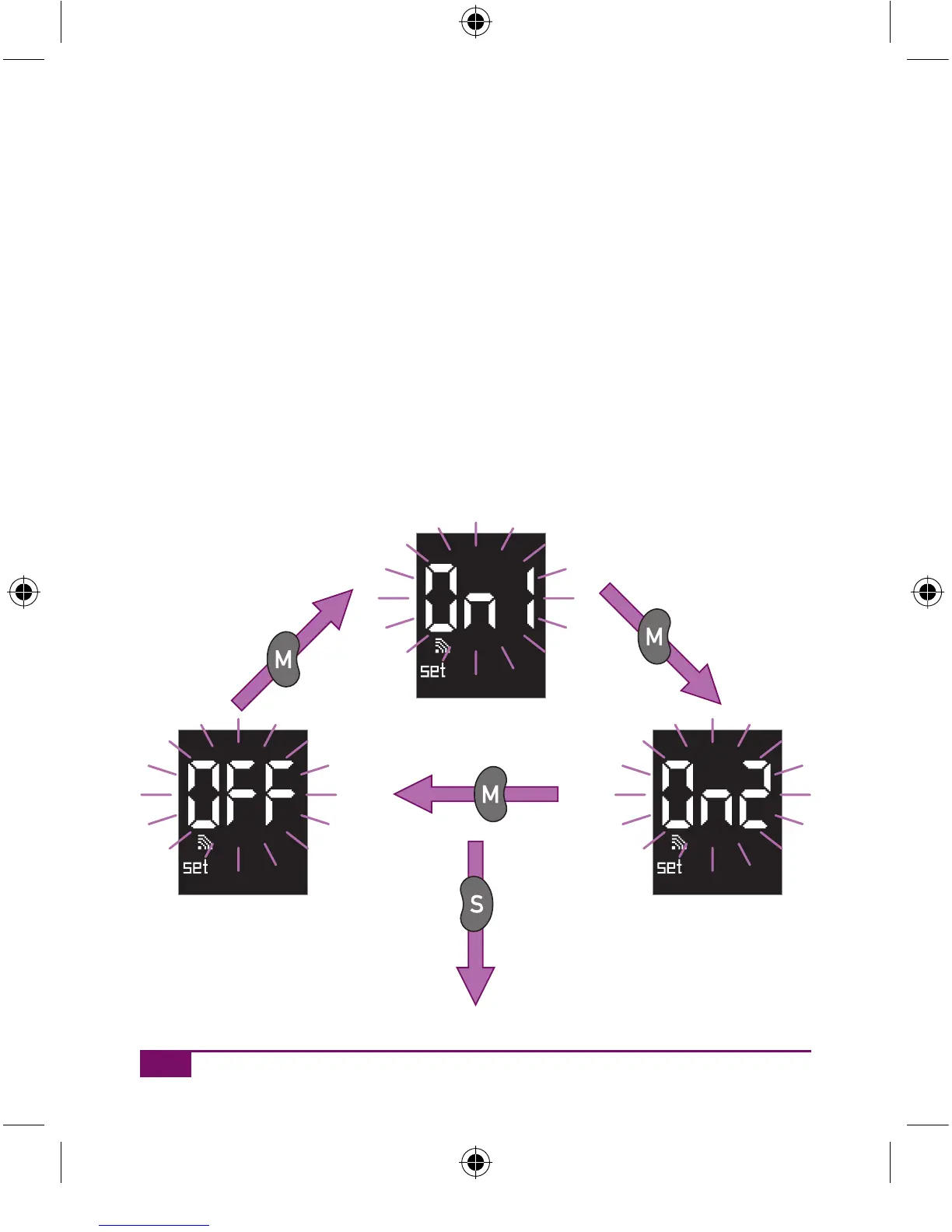

The beep tone is factory-set to on (
0n1 ).
Beep tone turned on
Beep tone turned off Acoustic Mode turned on
AC_CP_LCM_Manual_EN-UK final.indd 46_CP_LCM_Manual_EN-UK final.indd 46 20.6.2007 11:04:0420.6.2007 11:04:04

Accu-Chek Compact Plus Specifications

General

Measurement Range	10-600 mg/dL
Sample Size	1.5 µL
Test Time	5 seconds
Automatic Coding	Yes
Display	LCD
Measurement Method	Electrochemical
Battery Type	2 x AAA
Battery Life	Approx. 1000 tests
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Operating Conditions	10-40°C, 10-90% RH
