47
Rev 2.1

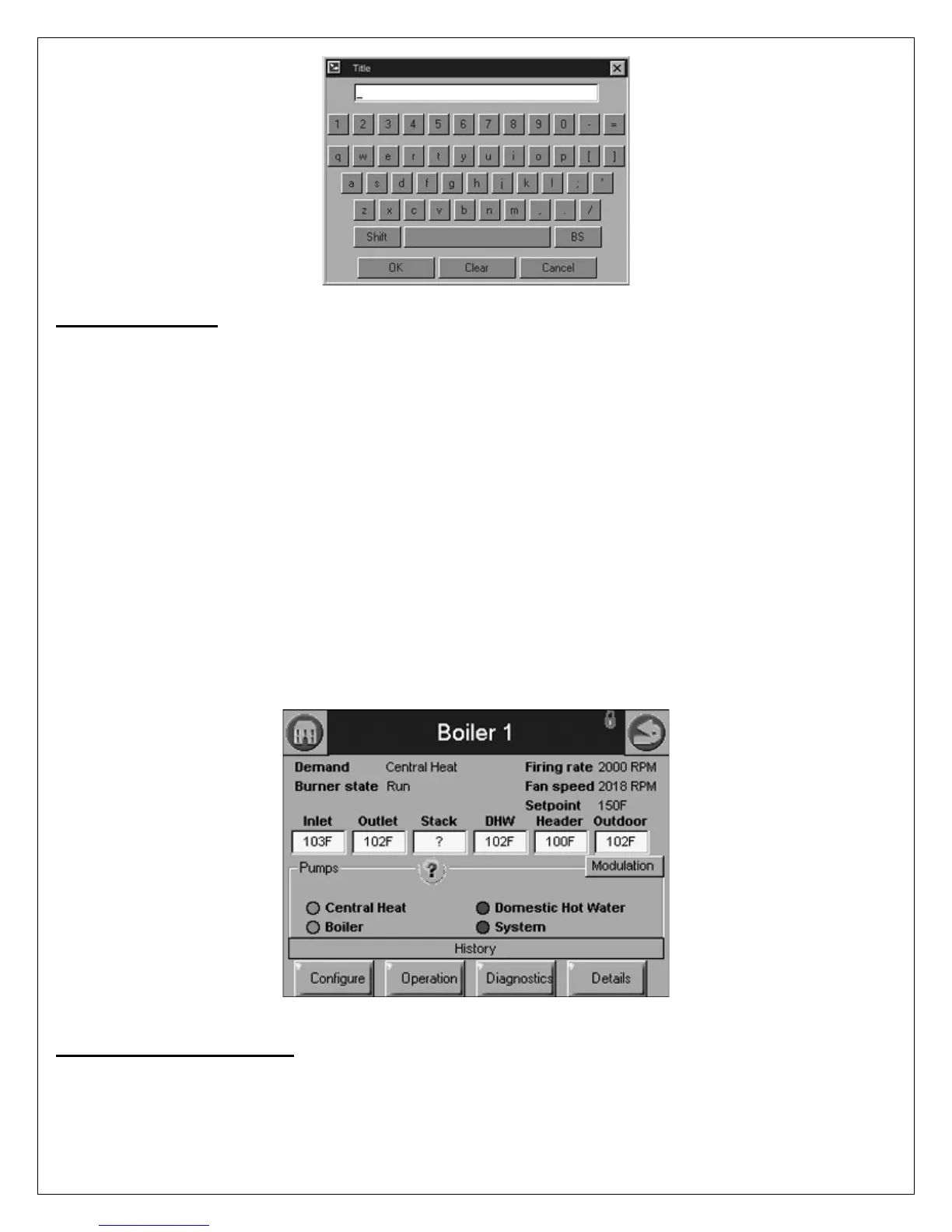

Figure 4.4 – Keyboard
4-7 Status Page
A Status Page as in Figure 4.5 is displayed when a single boiler is selected on the Home Page or root page for
equipment with Enhanced Panel. The Status Page displays the current condition of the unit and displays some of the
more important configuration settings. The boiler name associated with the boilers is displayed in the title on the Status
Page.
NOTE: When boiler has no boiler name defined, System Operator Interface displays the unit’s Modbus address to identify
the boiler.
The initial Status Page displayed for each boiler contains summary status information as shown in Figure 4.5. Any status
information not applicable for the installation is grayed or blanked out on the screen.
Buttons on this screen include:
x
Configure: Used to configure the boiler. See 4-8 CONFIGURATION PAGE for more details.
x
Operation: Used to perform daily/frequent functions with the boiler, such as setpoint adjustment, etc. See 4-13
OPERATION PAGE for more details.
x
Diagnostic: Used to view boiler diagnostic information. See 4-14 DIAGNOSTIC PAGE for more details.
x
Details: Used to view boiler detail status information. See 4-34 MONITORING for more details.
x
History: Used to view boiler history. See 4-12 HISTORY PAGE for more details.
x
Modulation: Used to toggle between three different status displays: Pump, Modulation, and Setpoint.
Figure 4.5 – Honeywell Sola Controller Summary Status Page
4-8 Configuration Page
The Configuration Page allows the user to view and set parameters that define how the boiler functions in the heating
system.
