4-15 Trend Analysis Page
Trend analysis of boiler status data can be viewed on the Operator Interface. A graph displays a historical view of
Honeywell Sola Controller status data over varying time periods.
A 2-dimensional graph with status data values shown on the Y axis over time specified on the X axis is displayed. Status
for the most recent time is represented on the left side of the graph with older status running towards the right side of the
graph.

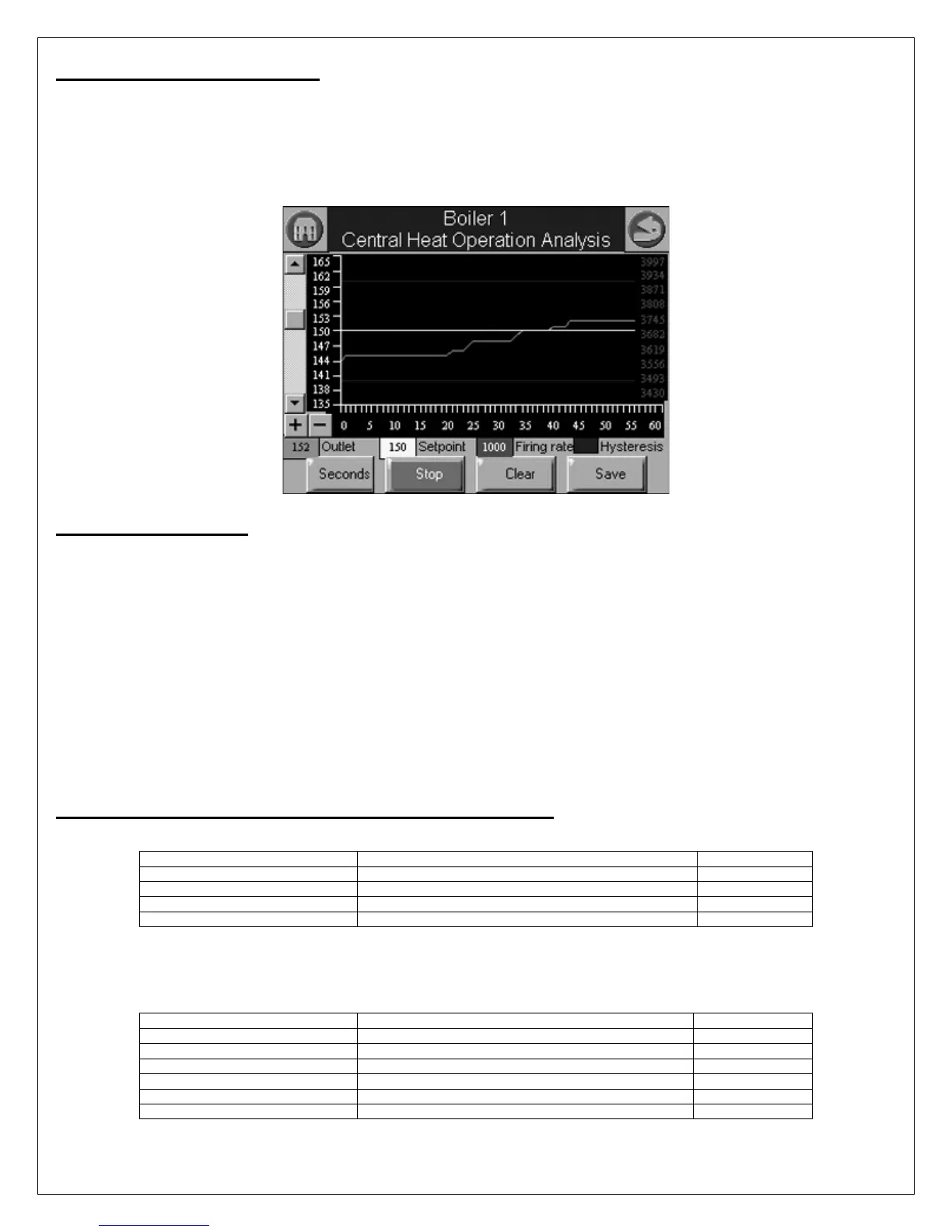

Figure 4.24 – Honeywell Sola Controller Trend Analysis Page
4-16 Configuration
Most of this configuration is performed by either the contractor/installer. Each functional group is displayed on the
Configuration menu page. Parameters in functional groups that are not applicable for the installation can be ignored. In
some cases, features in a functional group are disabled by default and are enabled when needed for the installation.
Refer to CHAPTER 5 – INSTALLER INTEGRATION GUIDE for more detail.
Honeywell Sola Controller Configuration Parameters
The following pages list the configuration parameters available for each Honeywell Sola Controller installed on the
system.
WARNING - Explosion Hazard Improper configuration can cause fuel buildup and explosion. Improper user
operation may result in PROPERTY LOSS, PHYSICAL INJURY or DEATH. The Operator Interface Display used to
change parameters must be attempted by only experienced and/or licensed burner/boiler operators and
mechanics.
4-17 System Identification & Access Parameters
Table 4.3 displays System Identification & Access parameters.
Parameter Comment Password
Burner name Name to identify boiler None
Installation Notes regarding installation None
OEM identification Boiler model number Read Only
Installer password Change installer password setting Read Only
Table 4.3 – System Identification and Access Parameters
When the burner name is changed, the name is saved in the Honeywell Sola Controller and displayed in the title of all
pages that zoom into the Honeywell Sola Controller.
Status Comment Password
Product Type Honeywell Sola Controller product identification Read Only
OS Number Model number associated with Honeywell Sola Controller Read Only
Software Version Version of software running in Honeywell Sola Controller Read Only
Date Code Honeywell Sola Controller assembled date Read Only
Application Revision Version of application data in Honeywell Sola Controller Read Only
Safety Revision Revision of safety data in Honeywell Sola Controller Read Only
