Altos RAIDWatch User Guide
80
• Password: A user-configurable security setting. Note, the password and name fields combined
have a maximum size of 16 characters.(For more information see section 3.3 on page 33).
• Time: Allows you to select the Time Zone and to input the current time in your area. See Figure
6–12.
• Download: An user can select
Download Firmware, Download Firmware/Bootrecord,
Download NVRAM, Upload NVRAM, Download BIOS
. All of the Download functions will
prompt for a file source from the current workstation. Upload NVRAM will prompt for a file
destination at the current workstation.
• System: system functions are shown in Figure 6–13 and described below:
• Name: A user-configurable identifier for the controller.
Note: The name and password fields combined have a maximum size of 16 characters, see
Figure 6–11.

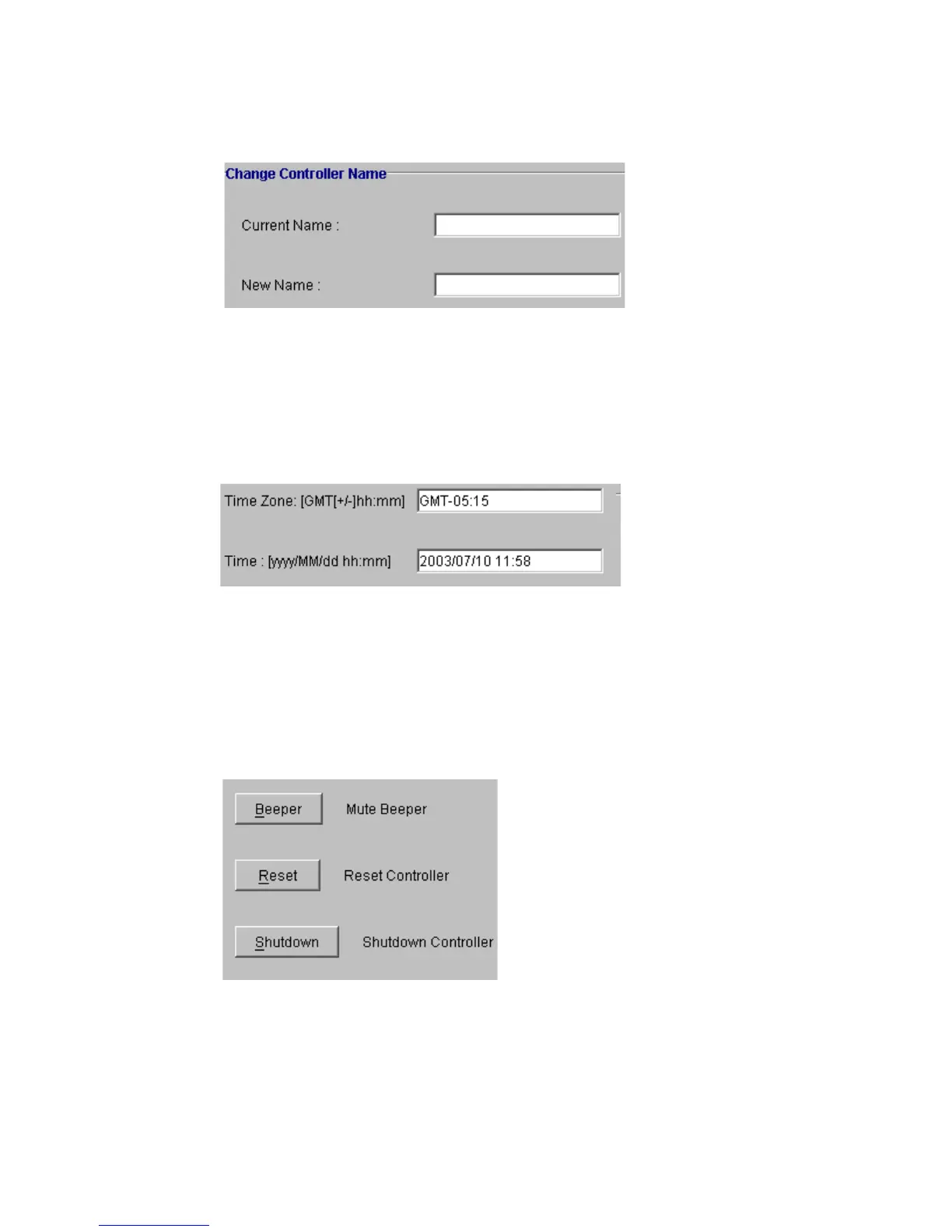

Figure 6–11 Change Name
Figure 6–12 Change Time
Figure 6–13 Available System Functions
