12.6.4 Using the Event List

Event List, shown in Figure 12–10, displays all the event messages recorded ever since the

installation of Primary agent.

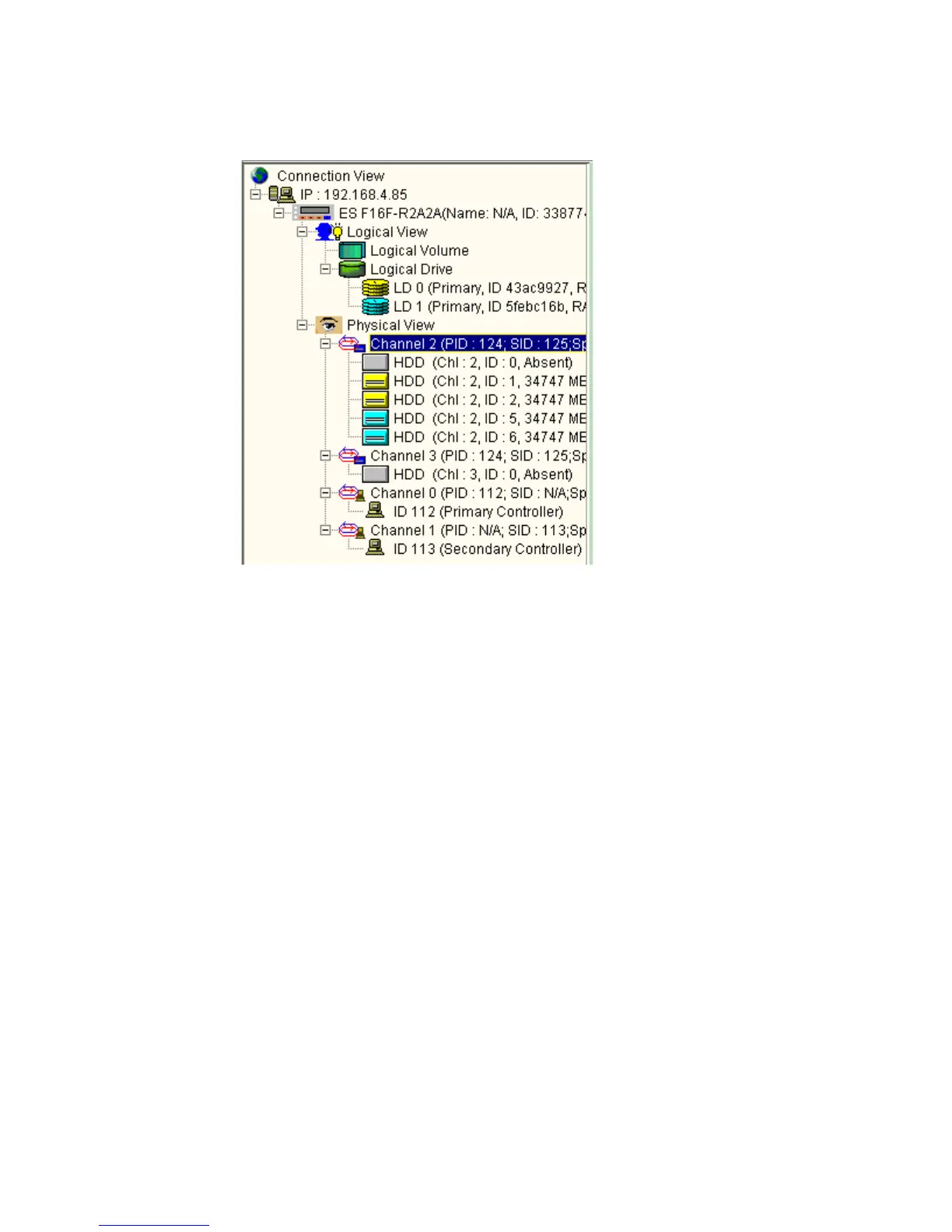

Figure 12–9 Connection View: Navigation Panel
