9.2 LUN Mapping
9.2.1 Mapping a Complete LD or LV
1 If you want to map a complete LD or LV make sure that the LD or LV has not been partitioned.
2 Follow the steps listed in Section 1 above to access the LUN Map Table shown in Figure 9–3.
3 Select the LUN Mapping tab shown at the top of the LUN Map Table. A new screen will appear in
the content window. From this screen first select the Add sub-tab, and then click on the LUN sub-
tab. (See Figure 9–4).

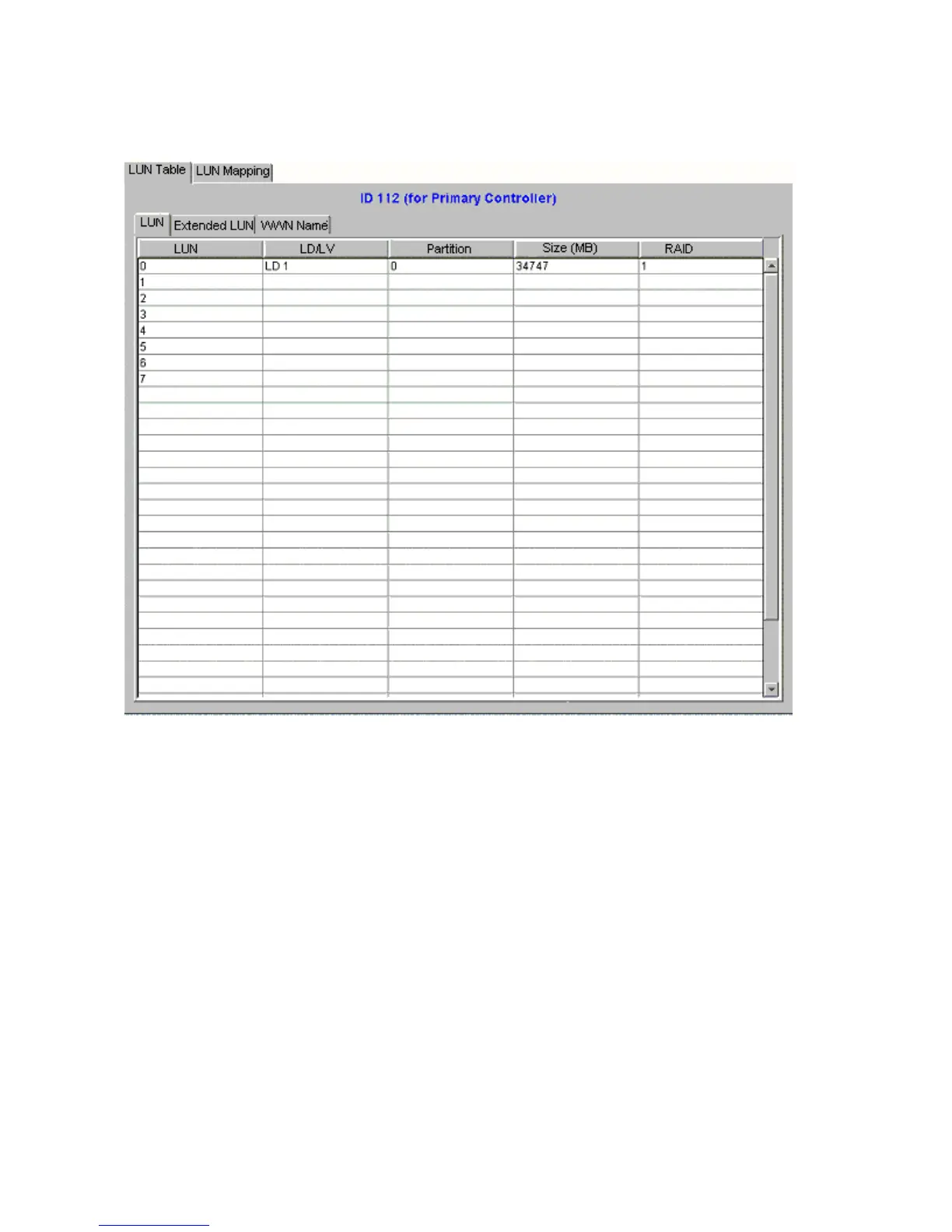

Figure 9–3 LUN Map Table
