3-10 Machine Maintenance Procedures
Base Door Removal 0
Prerequisite:
Battery Pack Removal
1. Remove four (4) screws securing the base door in place (Figure 3-5).

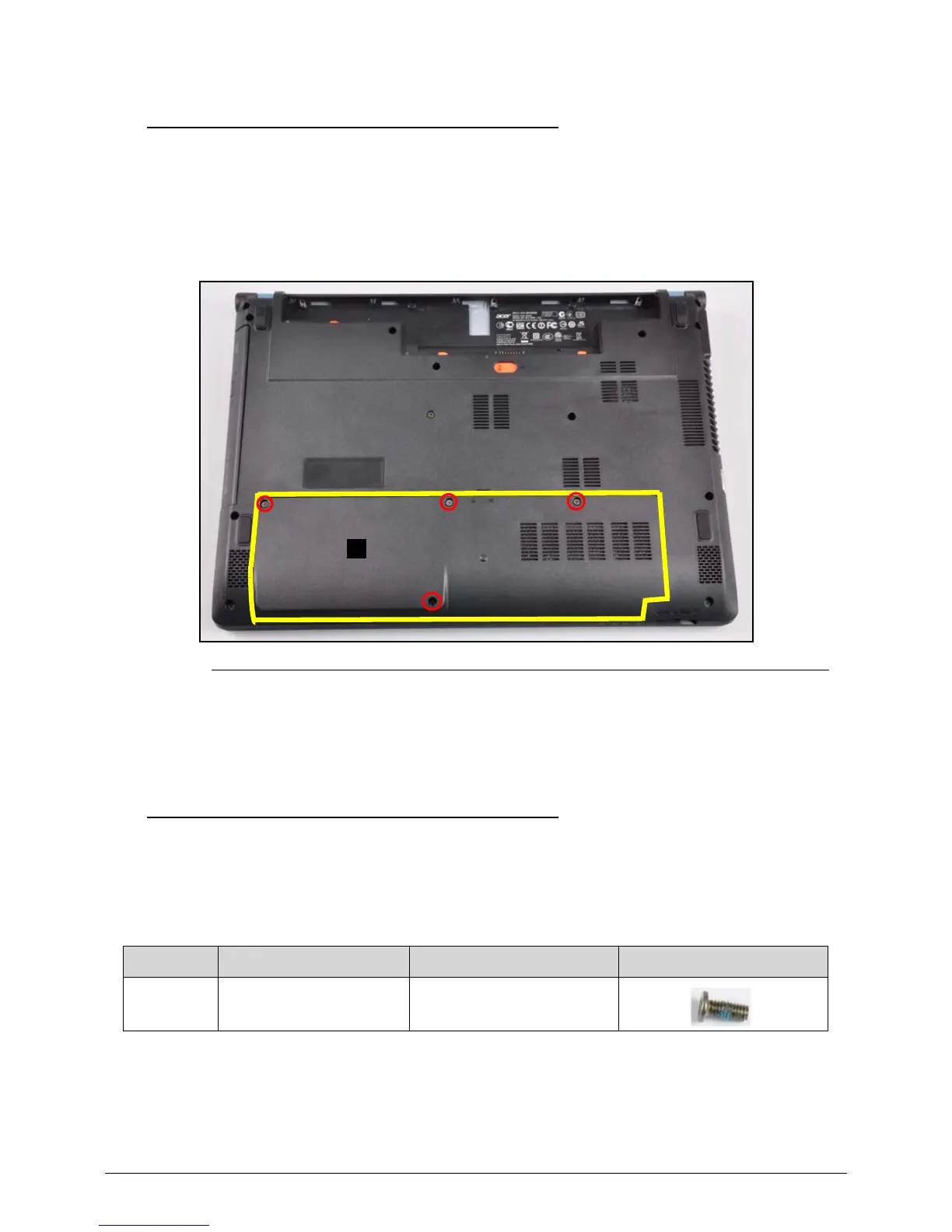

Figure 3-5. Base Door
2. Slide the base door (A) toward the front of the system and lift away from the system
(Figure 3-5).
Base Door Installation 0
3. Slide the base door (A) downwards and towards the back of the system (Figure 3-5).
4. Install and secure four (4) screws to the base door. Refer to Figure 3-5.
5. Install battery Pack.
ID Size Quantity Screw Type
A M2.5*6 4
