Machine Maintenance Procedures 3-21
Keyboard Module Removal 0
Prerequisite:
Palm Rest Cover Removal
1. Remove fifteen (15) screws securing the keyboard module in place (Figure 3-18).

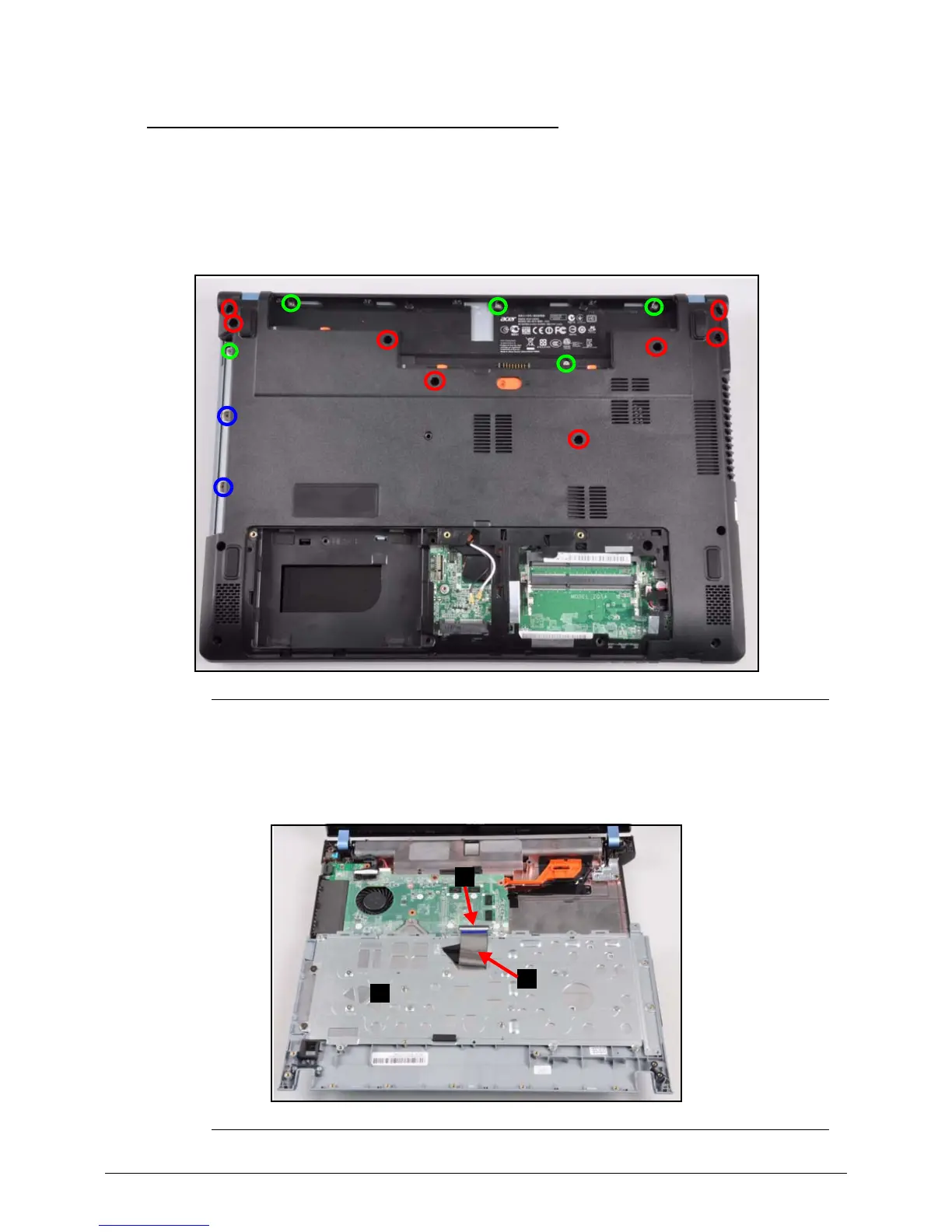

Figure 3-18. Keyboard Screw Location
2. Turn the keyboard module over so that the keyboard module (C) is face down on the
base assembly (Figure 3-19).
3. Disconnect keyboard FPC (A) from mainboard connector (B) (Figure 3-19).
Figure 3-19. Keyboard FPC
