3-18 Machine Maintenance Procedures
Palm Rest Cover Removal 0
Prerequisite:
HDD (Hard Disk Drive) Module Removal

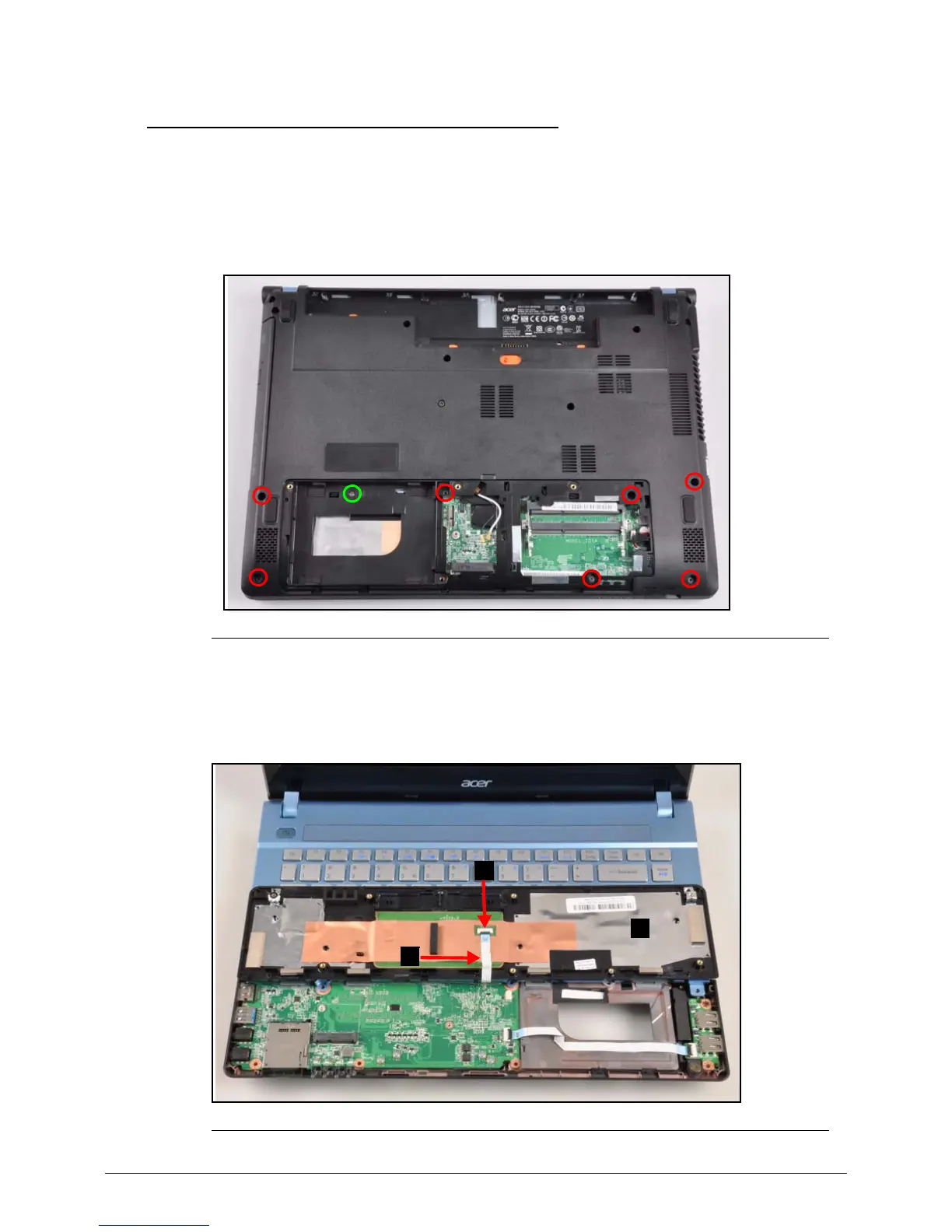

1. Remove eight (8) screws securing the palm rest cover in place (Figure 3-15).
Figure 3-15. Palm Rest Cover Screws Location
2. Turn the palm rest cover over so that the palm rest cover (C) is face down on the
keyboard (Figure 3-16).
3. Disconnect Touchpad FPC (A) from Touchpad connector (B) (Figure 3-16).
Figure 3-16. Touchpad FPC
