HDD (Hard Disk Drive) Module Removal 0
Prerequisite:
Base Door Removal
1. Find HDD module (A) on the base assembly as shown in Figure 3-6.
2. Pull the tab to dicsonnect HDD cable from the mainboard connector (D) (Figure 3-10).
3. Pull the tab (B) to release HDD module from mainboard connector (C). Refer to
Figure 3-10.

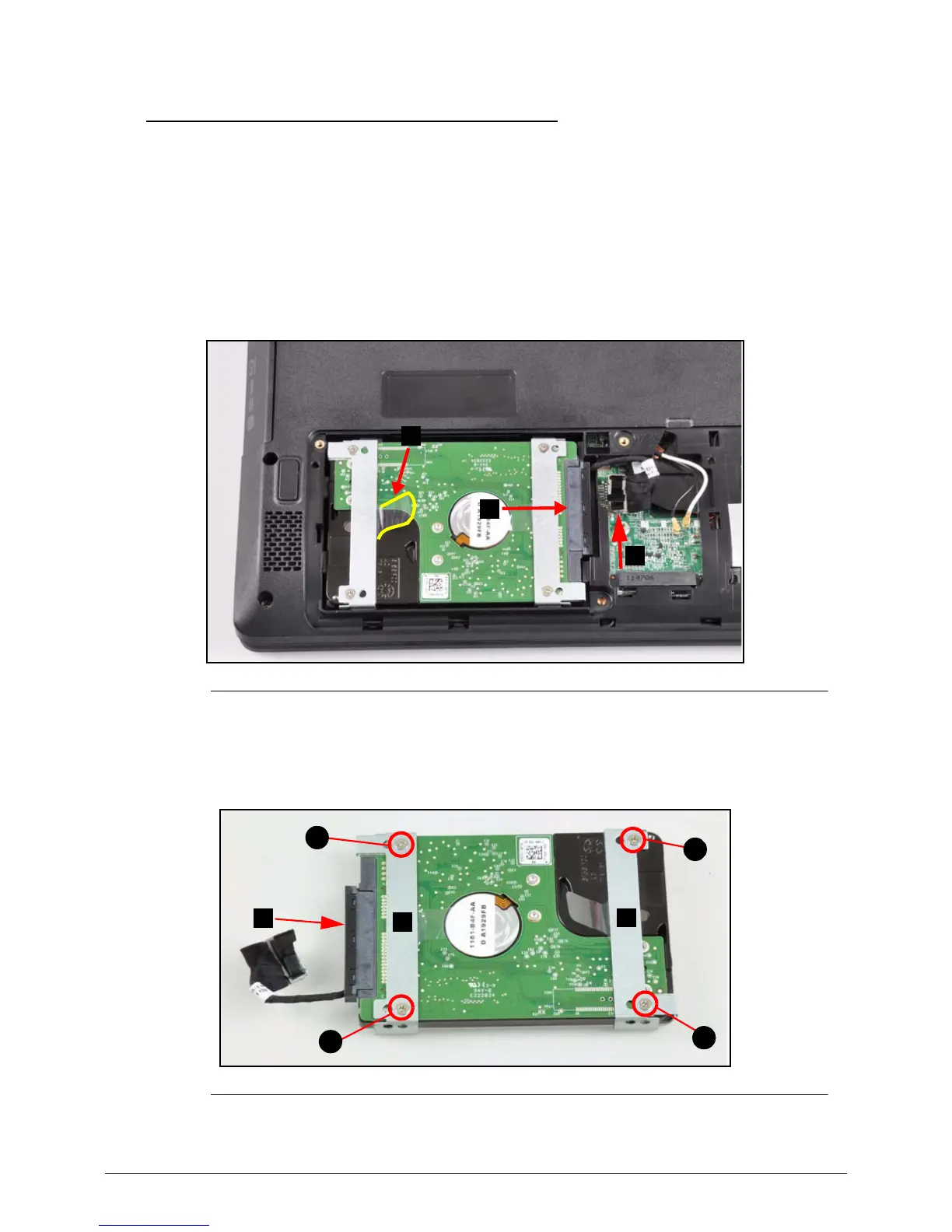

Figure 3-10. HDD Module
4. Remove four (4) screws (F) from HDD bracket (G) (Figure 3-11).
5. Remove HDD cable from HDD connector (E).
Figure 3-11. HDD Module
