Acer FL8610 - Page 15

4
English
Bottom side

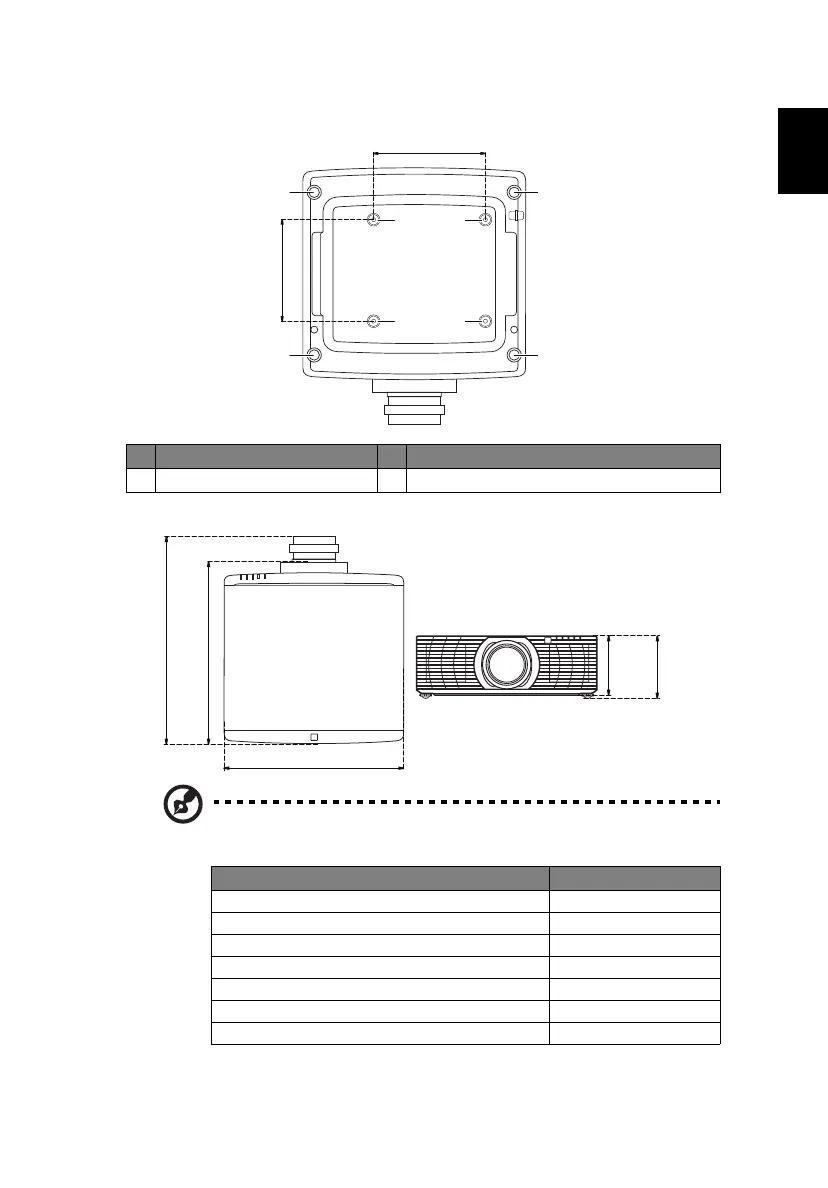

Dimensions
Note: [A] differs when different lens is installed.
# Description # Description
1 Tilt adjusting wheel 2 Ceiling mount holes (screw type: M6)
Lens installed [A]
Acer FL8 series Standard Zoom Lens 594.1
Acer FL8 series Ultra Short Throw Zoom Lens 609.9
Acer FL8 series Short Throw Zoom Lens 611.4
Acer FL8 series Middle Throw Zoom Lens 631.5
Acer FL8 series Long Throw Zoom Lens 631.5
Acer FL8 series Ultra Long Throw Zoom Lens 631.5
Acer FL8 series Ultra Short Throw Lens 612.1
1
2
2
2
2
1
1
1
495 mm
450 mm
552.5
mm
[A]
mm
548 mm
179.5
mm
189.5
mm
