Acer FL8610 - Projector Overview; Projector Outlook

3
English

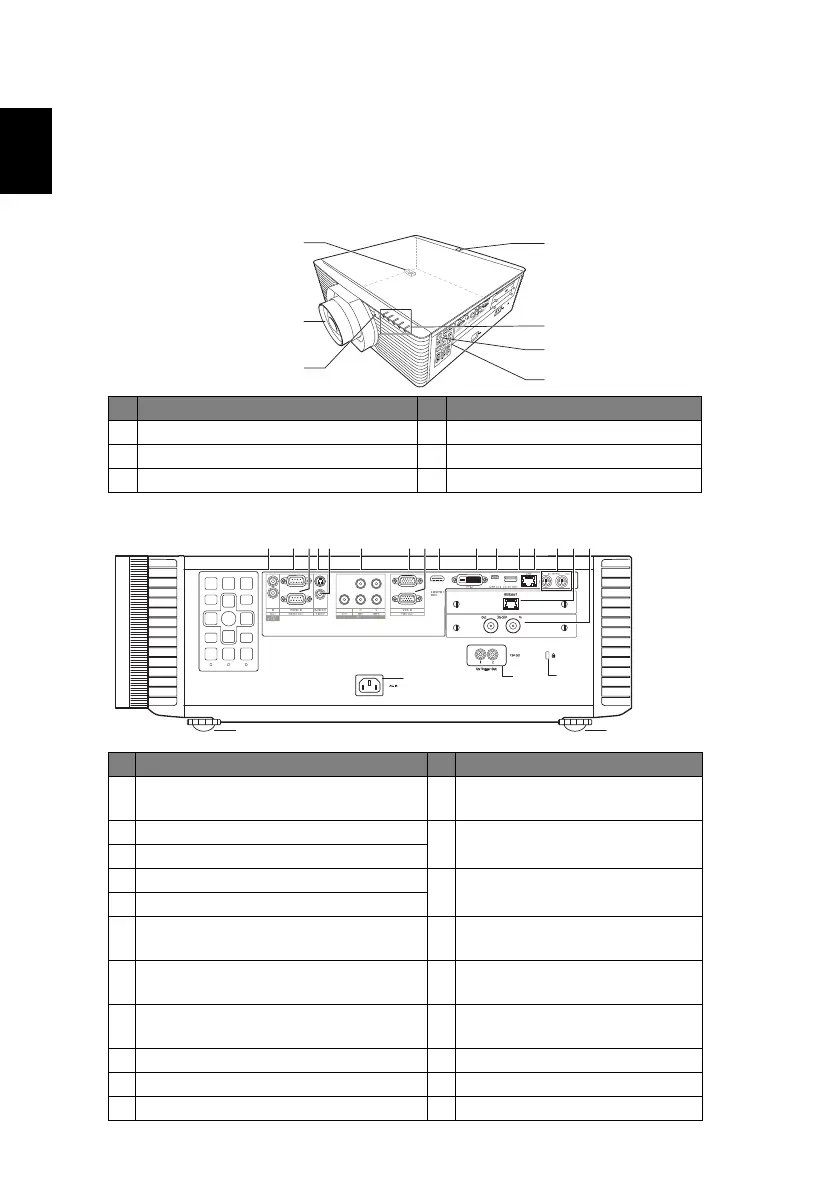

Projector Overview
Projector Outlook
Front/upper side
Side
# Description # Description
1 Security bar 4 Indicator LED
2 Projection lens (optional) 5 Power key
3 Remote control receiver 6 Control panel
# Description # Description
1 Wired remote control input connector
Wired remote control output connector
12 USB connector (Type A)
(DC 5V output)
2 RS232 input connector 13 LAN (RJ45 port for 10/100M
Ethernet)
3 RS232 output connector
4 S-Video input connector 14 3D sync input/output
connectors
5 Composite video input connector
6 BNC connectors 15 HDBaseT connector (Optional
extension board)
7 Analog RGB signal/HDTV/component
video input connector
16 3G-SDI input/output connector
(Optional extension board)
8 Monitor loop-through output
connector
17 Tilt adjusting wheel
9 HDMI (MHL) connector 18 Power socket
10 DVI-D input connector 19 12V DC output connectors
11 Mini USB connector 20 Kensington™ lock port
2
3
1
5
3
4
6
17
18
19
20
17
1 2 3 87 9 10 11 1213 144 65 1516
