Acer H5350 - Disassemble Bottom Cover Module

H5350
Condential 2-18
2-18 Disassemble Bottom
Cover Module

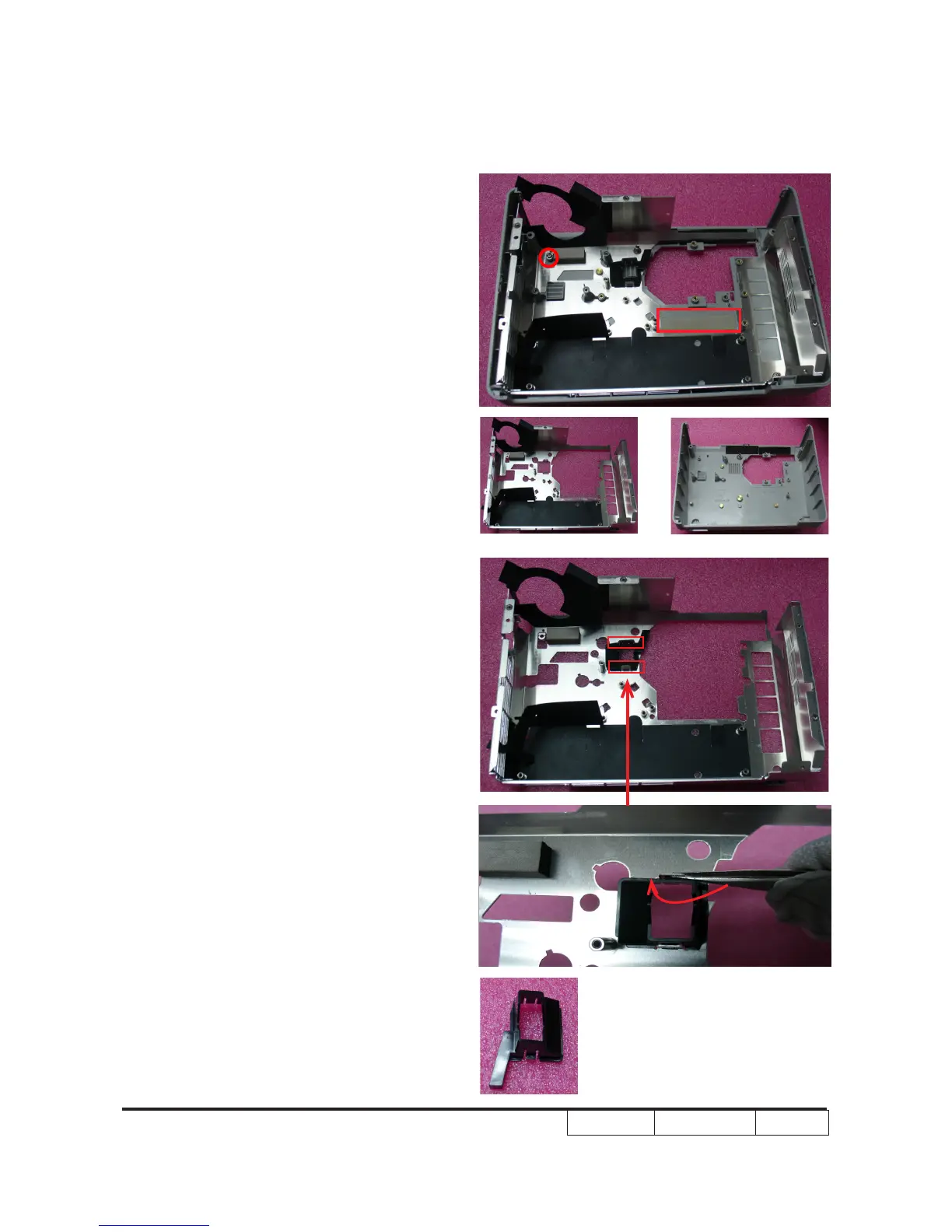

1. Unscrew 1 screw on Bottom Cover
Module
2. Tear 1 EMI tape
3. Disassemble the Bottom Cover Shielding
from Bottom Cover Module
4. Pull aside the iron sheet with Tweezers
to disassemble the ROD DUCT from
Bottom Cover Module
Note: - Due to the iron sheet is out of shape
easily,so we must turn it back before
assemble the ROD DUCT.
5. The disassembly is completed
Bottom Cover Module
Bottom Cover Module Shielding
ROD DUCT
