Acer H5350 - Assemble LVPS Module

H5350
Condential 2-25
2-24 Assemble LVPS Module

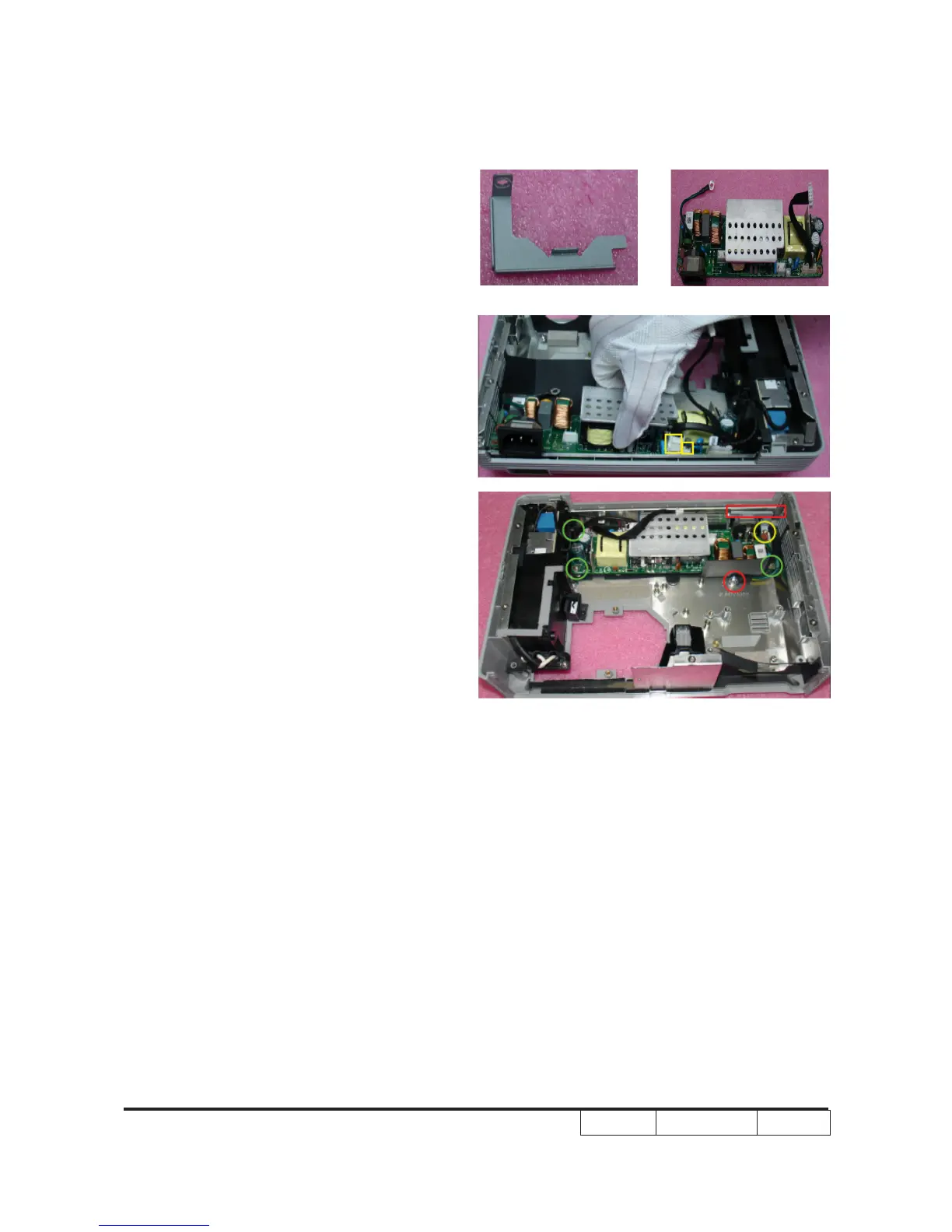

1. Plug 2 connectors (As yellow square)
and screw 3 screws (As green circle) to
assemble LVPS module
2. Screw 1 screw to assemble LVPS BRKT
(As yellow circle)
3. Screw 1 ground screw(As red circle)
LVPS BRKT
LVPS Module
