Interrupt Switch Module
2-23 Assemble Interrupt
Switch Module

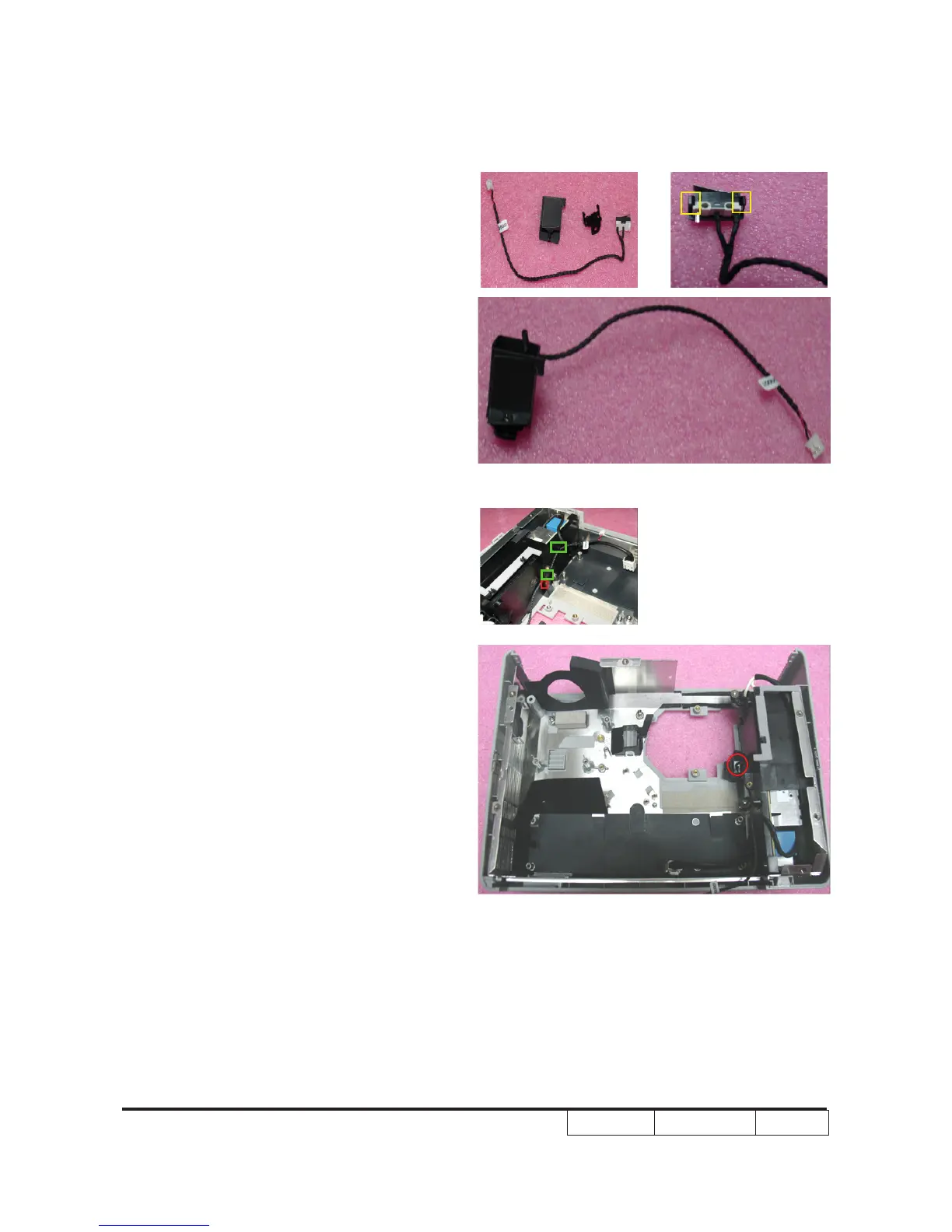

1. Fasten 2 tenons to assemble Interrupt
Switch on Interrupt Switch Holder
2. Stick a Mylar on Interrupt Switch Module
3. Screw 1 screw and stick 1 lm tape to
assemble Interrupt Switch Module
Note: - Interrupt Switch cable must be passed
through a dent and a aperture.And use
a lm tape to x the cable in the dent.
Film tape
Aperture
Dent
