Acer H5350 - Assemble Bottom Cover Module

H5350
Condential 2-21
2-21 Assemble Bottom
Cover Module

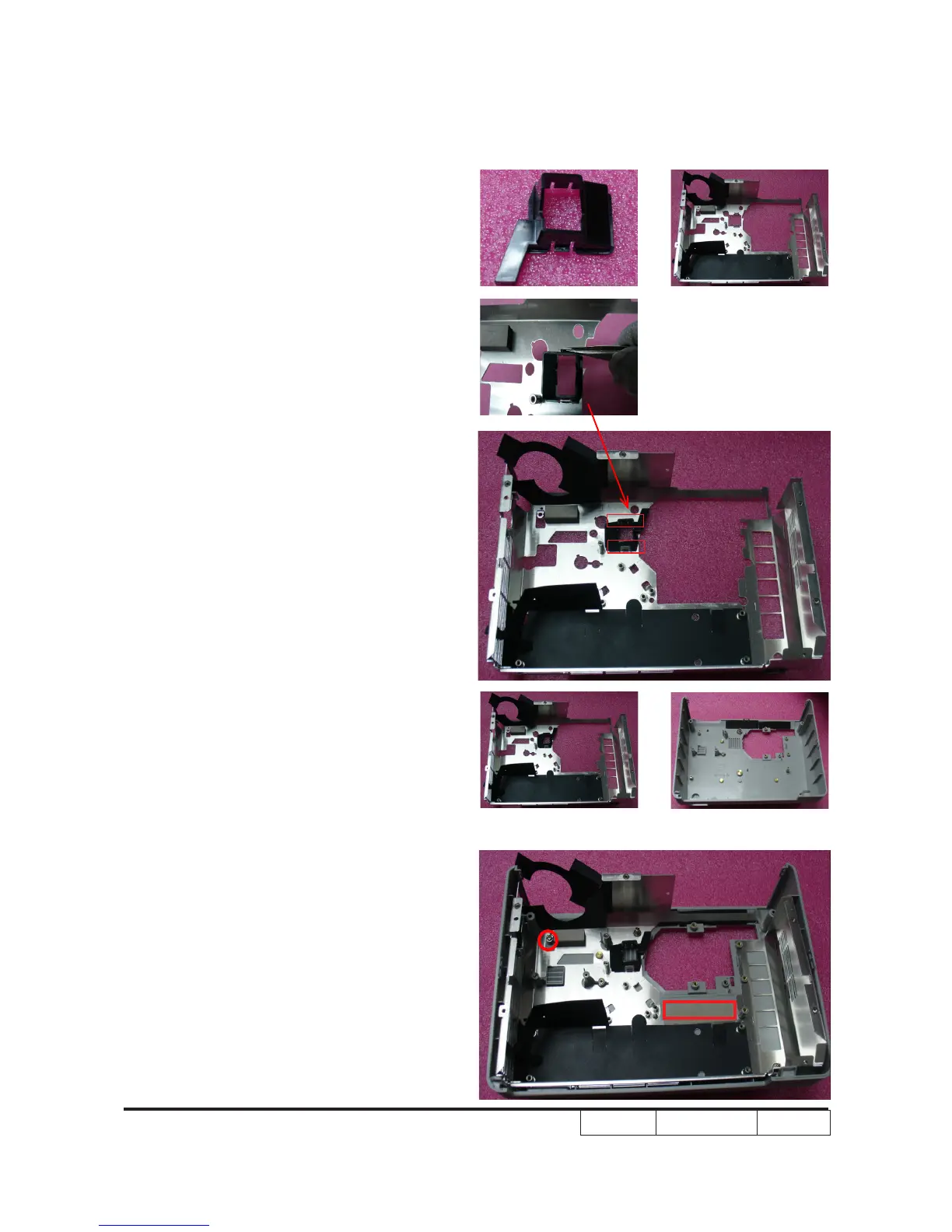

1. Assemble ROD DUCT on the Iron Sheet
2. Assemble the Bottom Cover Shielding on
Bottom Cover Module
3. Stick 1 EMI tape
4. Screw 1 screw on Bottom Cover Module
Bottom Cover Module
Bottom Cover shielding
